C101

Component ID: 27
Component : C101

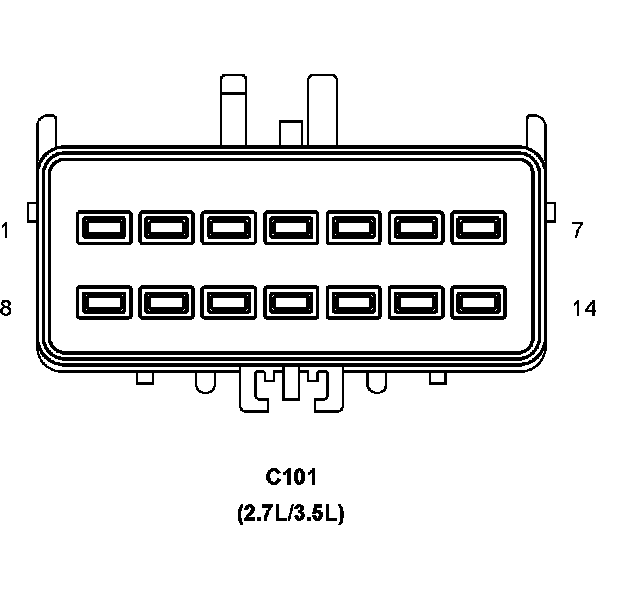

Connector:
Name : C101
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : FEMALE




Pin Description Circuit
1 GEN SENSE A804 20RD/GY
2 A/C COMPRESSOR CONTROL C27 20LB/WT
3 EOP SIGNAL G6 20VT/GY
4 5 VOLT SUPPLY F855 20PK/YL
5 5 VOLT SUPPLY F856 20YL/PK
6 STARTER CONTROL OUTPUT T750 16YL/VT
7 - -
8 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
9 - -
10 TRANSMISSION CONTROL T15 20YL/BR
11 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
12 MTV SIGNAL K234 20DB/OR
13 SRV CONTROL K236 20DB/LG
14 SRV SIGNAL K235 20DB/YL

Component Location - 17

Fig. 17:

Component Location - 24

Fig. 24:

Connector:
Name : C101
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : MALE




Pin Description Circuit
1 GEN SENSE A804 20RD/GY
2 A/C COMPRESSOR CONTROL C27 20LB/WT
3 EOP SIGNAL G6 16VT/GY
4 5 VOLT SUPPLY F855 20PK/YL
5 5 VOLT SUPPLY F856 20YL/PK
6 STARTER CONTROL OUTPUT T750 16YL/VT
7 - -
8 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
9 - -
10 TRANSMISSION CONTROL T15 20YL/BR
11 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
12 MTV SIGNAL K234 20DB/OR
13 SRV CONTROL K236 20DB/LG
14 SRV SIGNAL K235 20DB/YL

Component Location - 17

Fig. 17:

Component Location - 24

Fig. 24:
