Brake Fluid Level Sensor/Switch

Component ID: 340
Component : SENSOR-BRAKE FLUID LEVEL

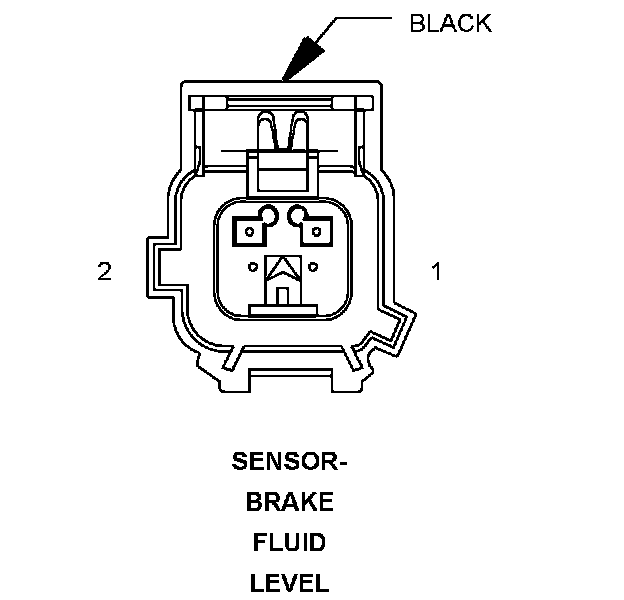

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 BRAKE FLUID LEVEL SIGNAL B20 20DG/OR
2 GROUND Z902 20BK

Component Location - 16

Fig. 16:

Component Location - 17

Fig. 17:

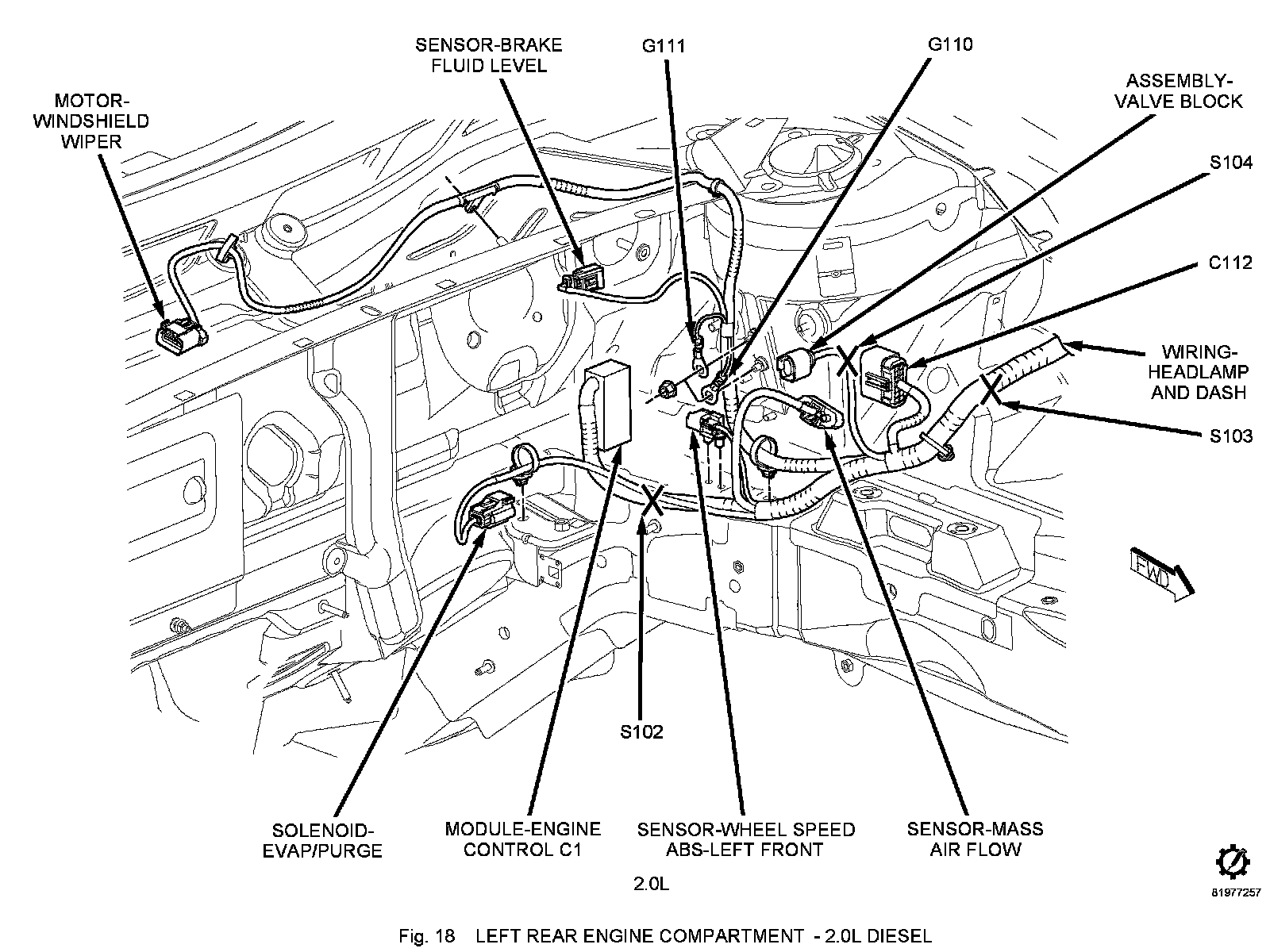

Component Location - 18

Fig. 18:
