Module-Door-Passenger

Component ID: 186
Component : MODULE-DOOR-PASSENGER

Connector:

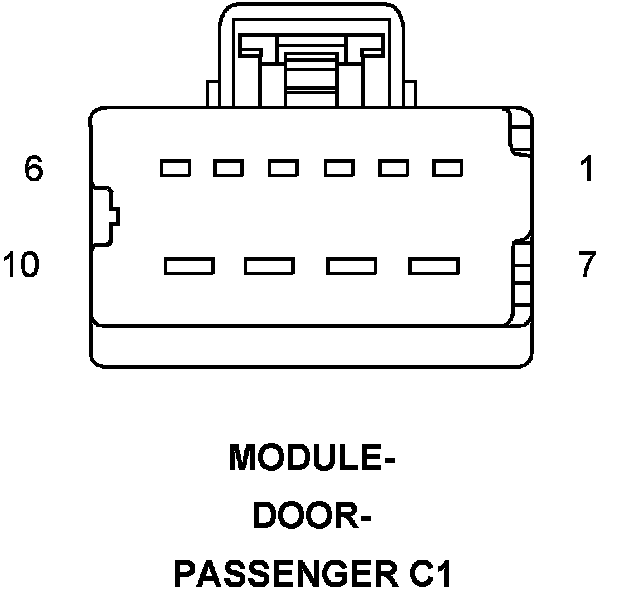

Name : MODULE-DOOR-PASSENGER C1
Color :
# of pins : 10




Pin Description Circuit
1 PASSENGER WINDOW HALL SENSOR A SIGNAL Q302 20OR/LG
2 PASSENGER WINDOW HALL SENSOR RETURN Q990 20BK/LG
3 PASSENGER WINDOW HALL SENSOR B SIGNAL Q304 20LG/OR
4 FUSED B(+) A937 14RD
5 - -
6 - -
7 FUSED B(+) A937 14RD
8 GROUND Z907 14BK
9 PASSENGER WINDOW EXPRESS DOWN DRIVER Q322 14LG/OR
10 PASSENGER WINDOW EXPRESS UP DRIVER Q312 14DB/OR



Connector:

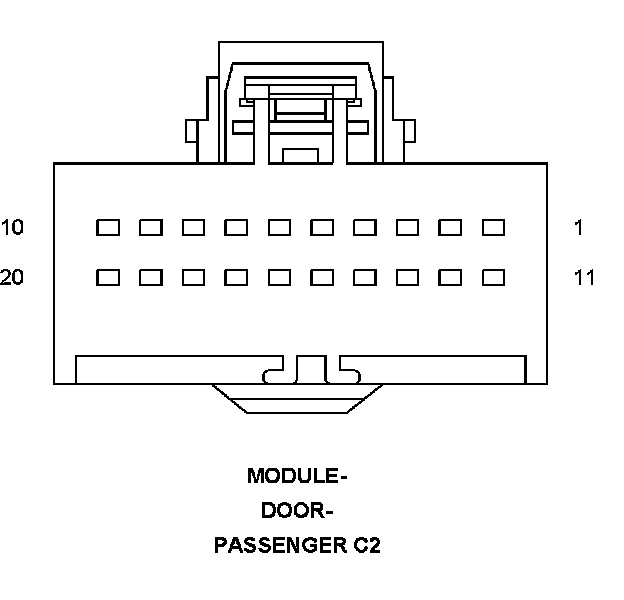

Name : MODULE-DOOR-PASSENGER C2
Color :
# of pins : 20




Pin Description Circuit
1 CAN B BUS (-) D54 20WT
2 CAN B BUS (+) D55 20WT/OR
3 - -
4 PASSENGER WINDOW EXPRESS SWITCH RETURN Q936 20OR/LG
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -
11 PASSENGER WINDOW HALL SENSOR SUPPLY Q306 20OR/DB
12 - -
13 - -
14 PASSENGER WINDOW EXPRESS SWITCH MUX Q336 20OR/GY
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
