Blower Motor Resistor

Component ID: 227
Component : RESISTOR-BLOWER MOTOR

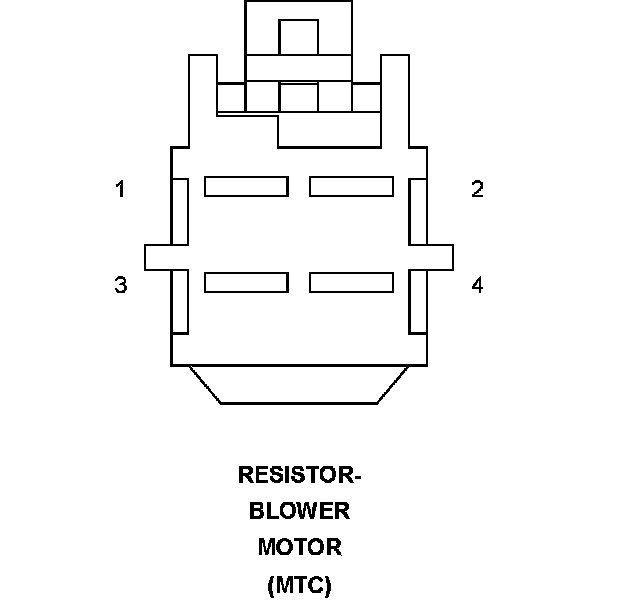

Connector:
Name : RESISTOR-BLOWER MOTOR
Color :
# of pins : 4
Qualifier : (MTC)




Pin Description Circuit
1 BLOWER MOTOR HIGH DRIVER C70 12DB/YL
2 BLOWER MOTOR M1 DRIVER C72 18DB/OR
3 BLOWER MOTOR M2 DRIVER C73 18DB/VT
4 BLOWER MOTOR LOW DRIVER C71 18DB/BR

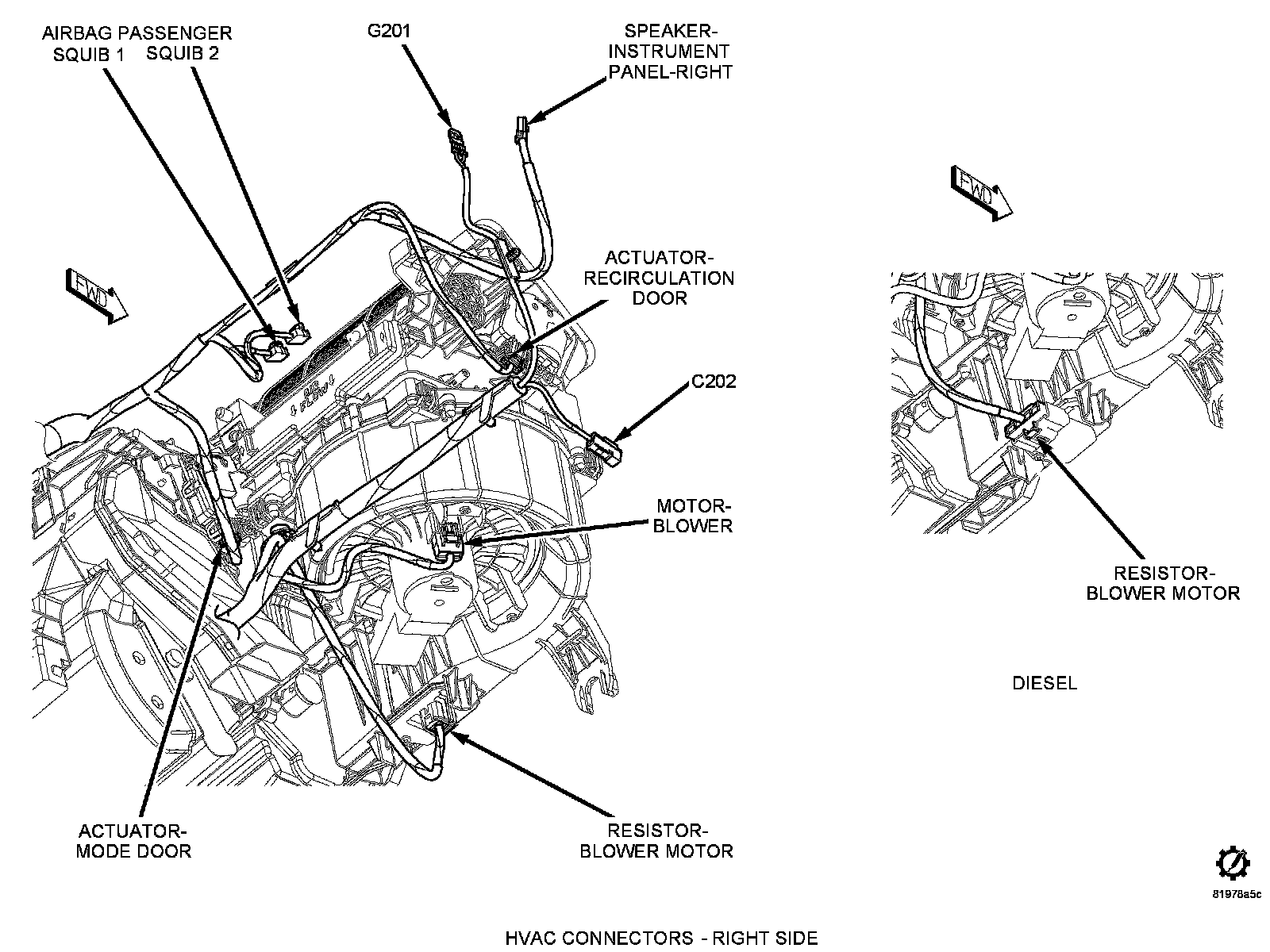

Component Location - 37




Component Location - 39
