Blower Motor

Component ID: 202
Component : MOTOR-BLOWER

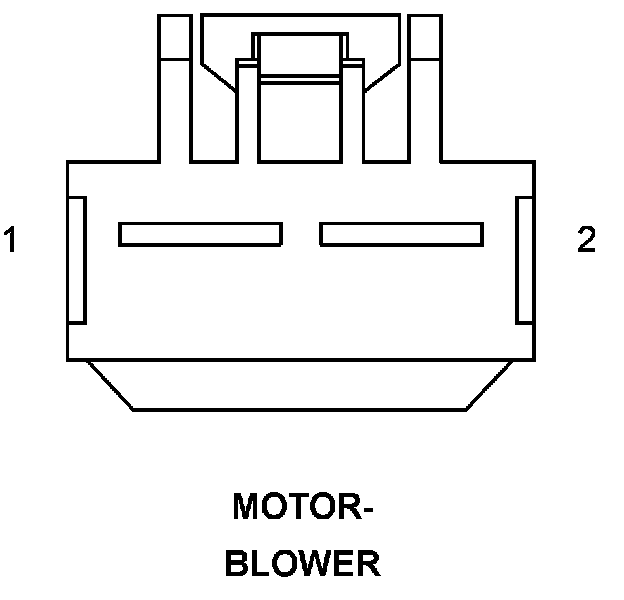

Connector:
Name : MOTOR-BLOWER
Color :
# of pins : 2




Pin Description Circuit
1 GROUND Z134 12BK/LG
Pin Description Circuit
1 BLOWER MOTOR HIGH DRIVER C70 12DB/YL
2 BLOWER MOTOR CONTROL C7 12DB

Component Location - 37




Component Location - 39




Component Location - 42

Fig. 42:
