Backup Lamp Switch

Component ID: 395
Component : SWITCH-BACKUP LAMP

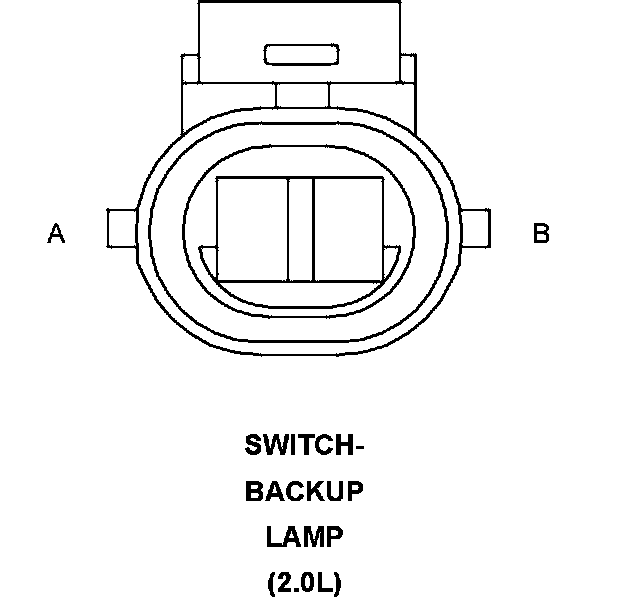

Connector:
Name : SWITCH-BACKUP LAMP
Color :
# of pins : 2
Qualifier : (2.0L)




A GROUND Z902 20BK
B BACKUP LAMP SWITCH SIGNAL T22 20YL/VT

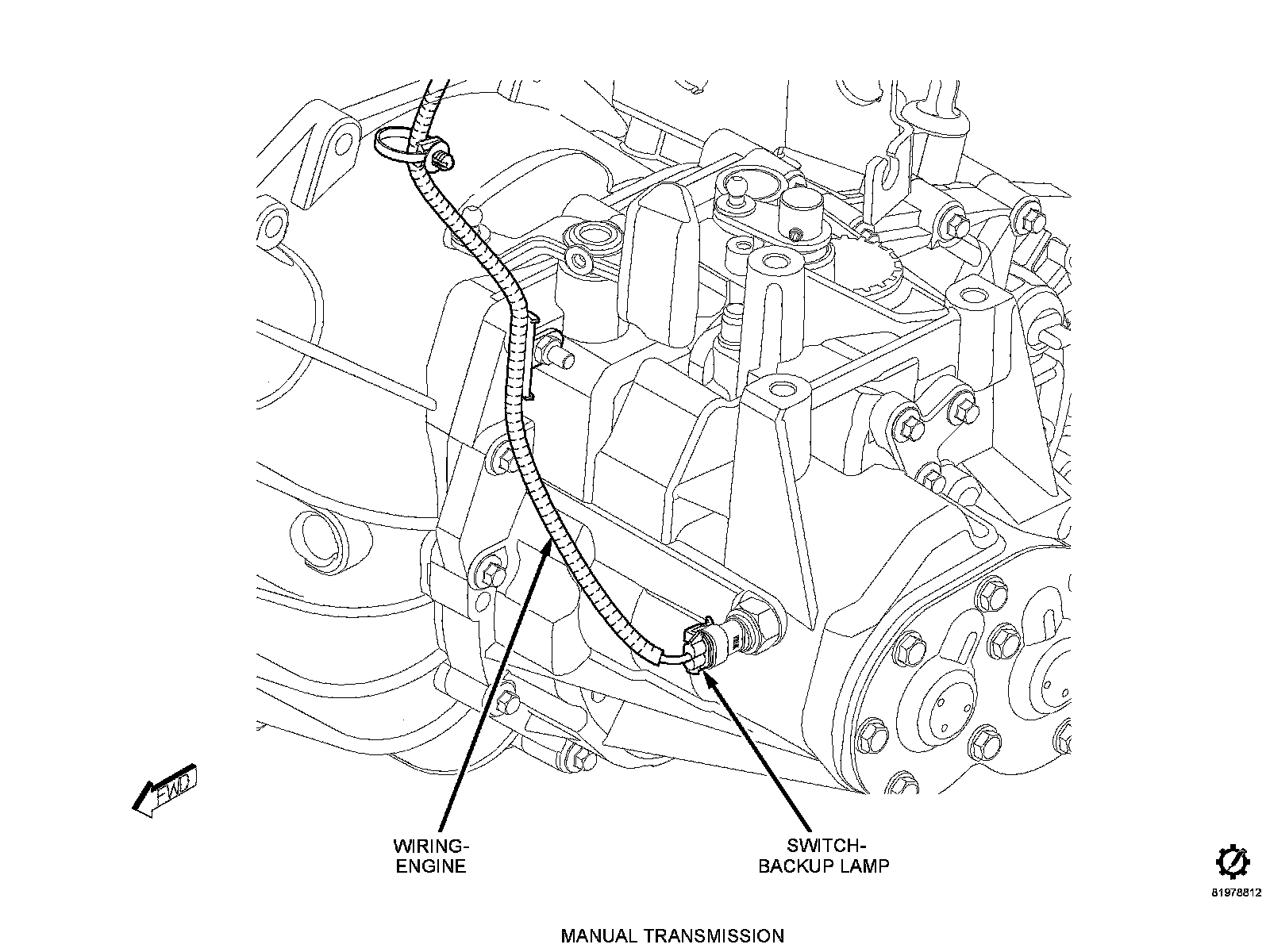

Component Location - 31




Component Location - 32

Fig. 32:

Connector:
Name : SWITCH-BACKUP LAMP
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 GROUND Z902 20BK
2 BACKUP LAMP SWITCH SIGNAL T22 20YL/VT

Component Location - 31




Component Location - 32

Fig. 32:
