Power Outlet-Instrument Panel

Component ID: 215
Component : POWER OUTLET-INSTRUMENT PANEL

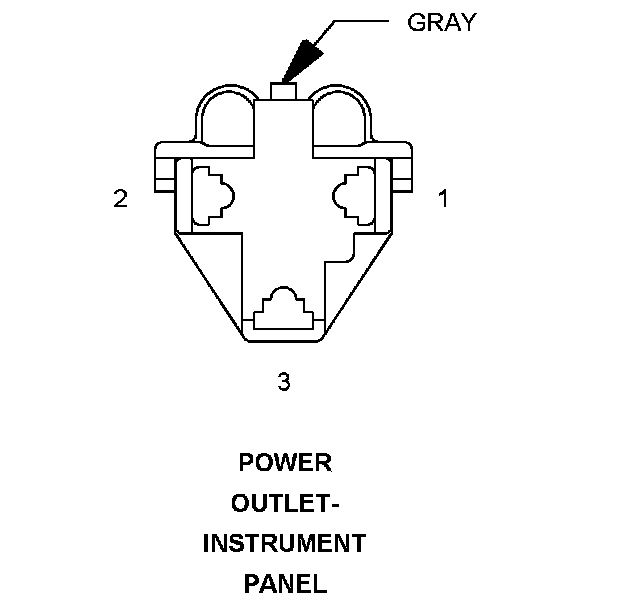

Connector:
Name : POWER OUTLET-INSTRUMENT PANEL
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F986 20PK/LG
2 - -
3 GROUND Z912 14BK
3 GROUND Z912 16BK

Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:
