Antenna-Radio

Component ID: 14
Component : ANTENNA-RADIO

Connector:

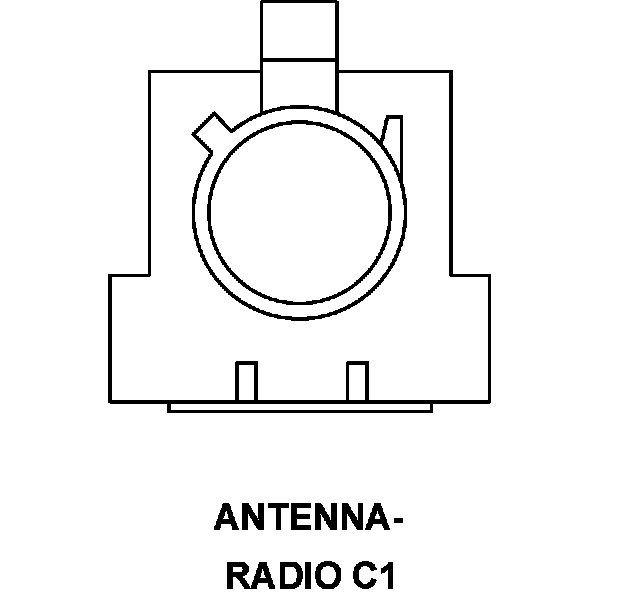

Name : ANTENNA-RADIO C1
Color :
# of pins : 2




Pin Description Circuit
1 ANTENNA SIGNAL D5 6WT/OR
2 ANTENNA SHIELD D931 WT/YL

Component Location - 68






Connector:

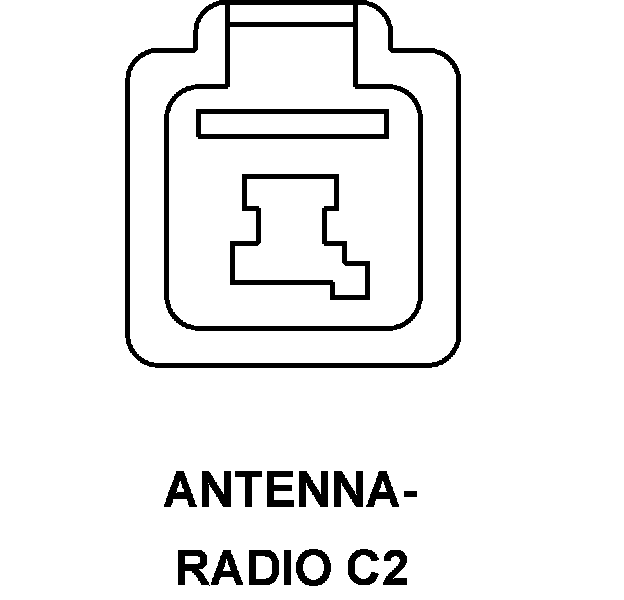

Name : ANTENNA-RADIO C2
Color :
# of pins : 1




Pin Description Circuit
1 AMPLIFIED ANTENNA FEED X62 18GY/OR

Component Location - 68
