Amplifier, Sound System
Component ID: 12
Component : AMPLIFIER-RADIO

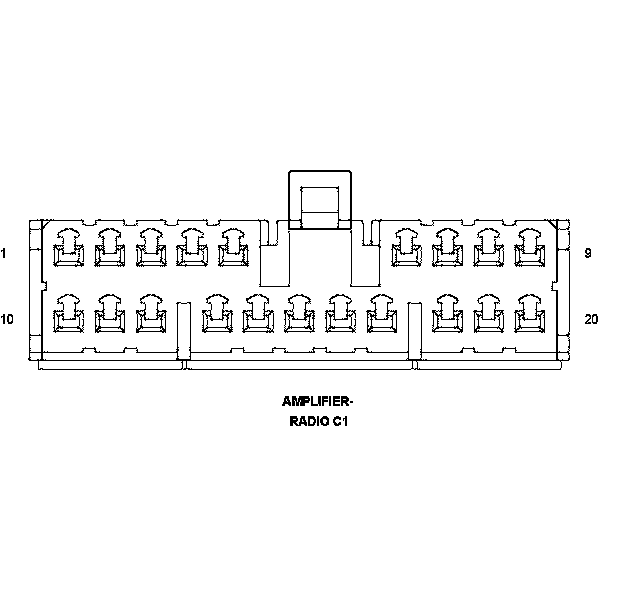

Connector:
Name : AMPLIFIER-RADIO C1
Color :
# of pins : 20
Pin Description Circuit
1 LEFT I/P SPEAKER (+) X209 18GY/OR
2 RIGHT I/P SPEAKER (+) X208 18GY/DG
3 - -
4 FUSED B(+) (I.O.D.) A419 18RD/PK
5 - -
6 CAN B BUS (+) D55 20WT/OR
7 RADIO LEFT AUDIO (+) X51 20DG/DB
8 RADIO RIGHT AUDIO (+) X52 20GY/DB
9 GROUND Z912 18BK
10 LEFT I/P SPEAKER (-) X299 18GY/YL
11 RIGHT I/P SPEAKER (-) X298 18GY/LG
12 - -
13 FUSED B(+) (I.O.D.) A420 18RD
14 - -
15 - -
16 - -
17 CAN B BUS (-) D54 20WT
18 RADIO LEFT AUDIO (-) X57 20DG/OR
19 RADIO RIGHT AUDIO (-) X58 20GY/OR
20 GROUND Z912 18BK
Component Location - 37
Component Location - 40
Fig. 40:
Component Location - 41
Fig. 41:
Component Location - 46
Fig. 46:

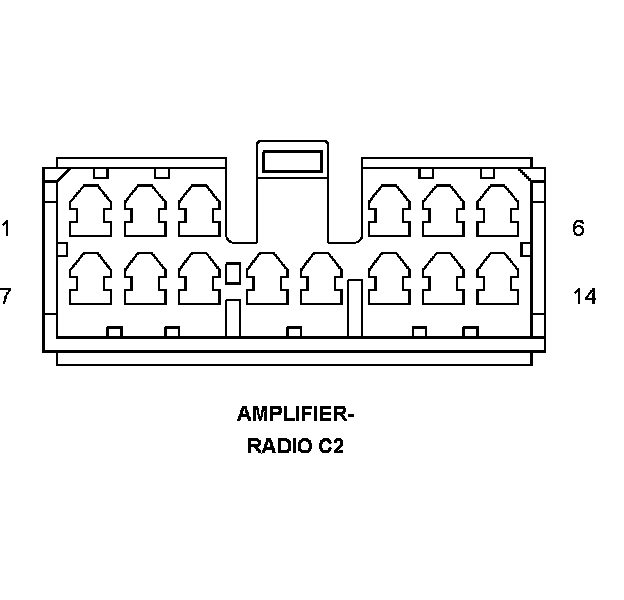

Connector:
Name : AMPLIFIER-RADIO C2
Color :
# of pins : 14
Pin Description Circuit
1 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
2 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
3 LEFT REAR SPEAKER (+) X303 18DG/TN
4 RIGHT REAR SPEAKER (+) X304 18DG/BR
5 - -
6 - -
7 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
8 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
9 LEFT REAR SPEAKER (-) X393 18DG/GY
10 - -
11 - -
12 RIGHT REAR SPEAKER (-) X394 18YL/GY
13 - -
14 - -
Component Location - 37
Component Location - 40
Fig. 40:
Component Location - 41
Fig. 41:
Component Location - 46
Fig. 46:
