Alarm Module, (Vehicle Antitheft)

Component ID: 194
Component : MODULE-INTRUSION TRANSCEIVER

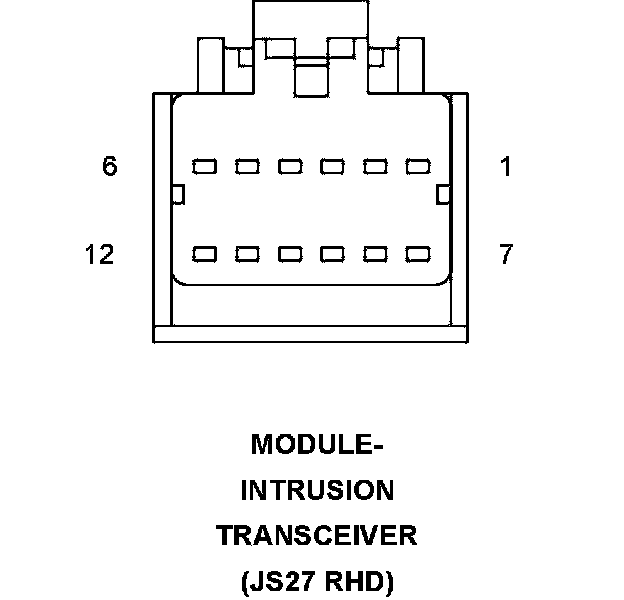

Connector:
Name : MODULE-INTRUSION TRANSCEIVER
Color :
# of pins : 12
Qualifier : (JS27 RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A415 22RD/LB
2 - -
3 - -
4 - -
5 SIREN SIGNAL CONTROL D96 20WT/LB
6 CAN B BUS (+) D55 20WT/OR
7 GROUND Z910 22BK
8 - -
9 - -
10 - -
11 LIN BUS D122 22WT/LG
12 CAN B BUS (-) D54 20WT

Component Location - 49

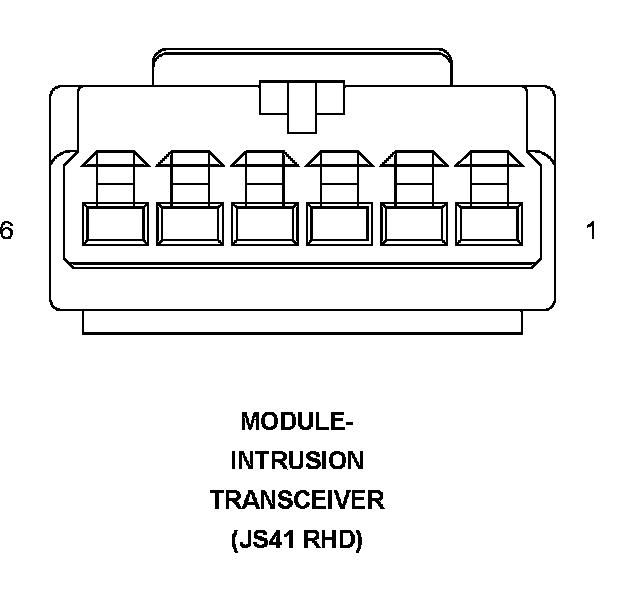

Connector:
Name : MODULE-INTRUSION TRANSCEIVER
Color :
# of pins : 6
Qualifier : (JS41 RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A418 20RD/LG
2 - -
3 CAN B BUS (+) D55 20WT/OR
4 CAN B BUS (-) D54 20WT
5 SIREN SIGNAL CONTROL D96 20WT/LB
6 GROUND Z907 20BK

Component Location - 49
