Air Temperature Sensor ( Ambient / Intake )

Component ID: 355
Component : SENSOR-INTAKE AIR TEMPERATURE

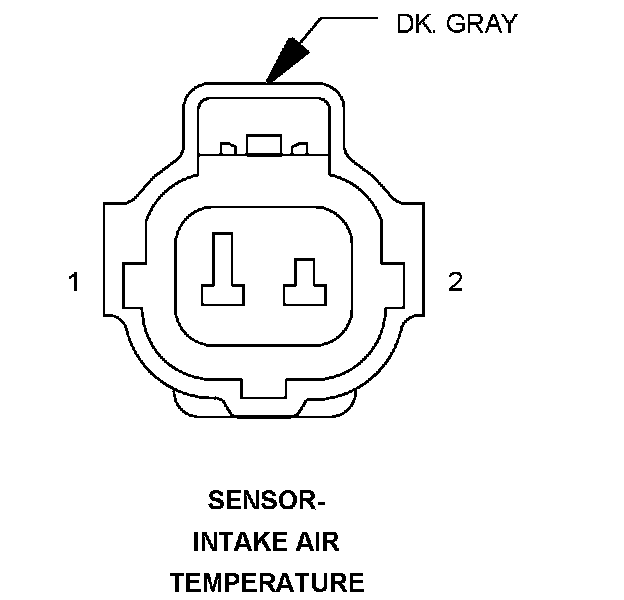

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : DK. GRAY
# of pins : 2




Pin Description Circuit
1 IAT SIGNAL K21 20DB/LG
2 SENSOR GROUND K900 20DB/LB

Component Location - 16

Fig. 16:

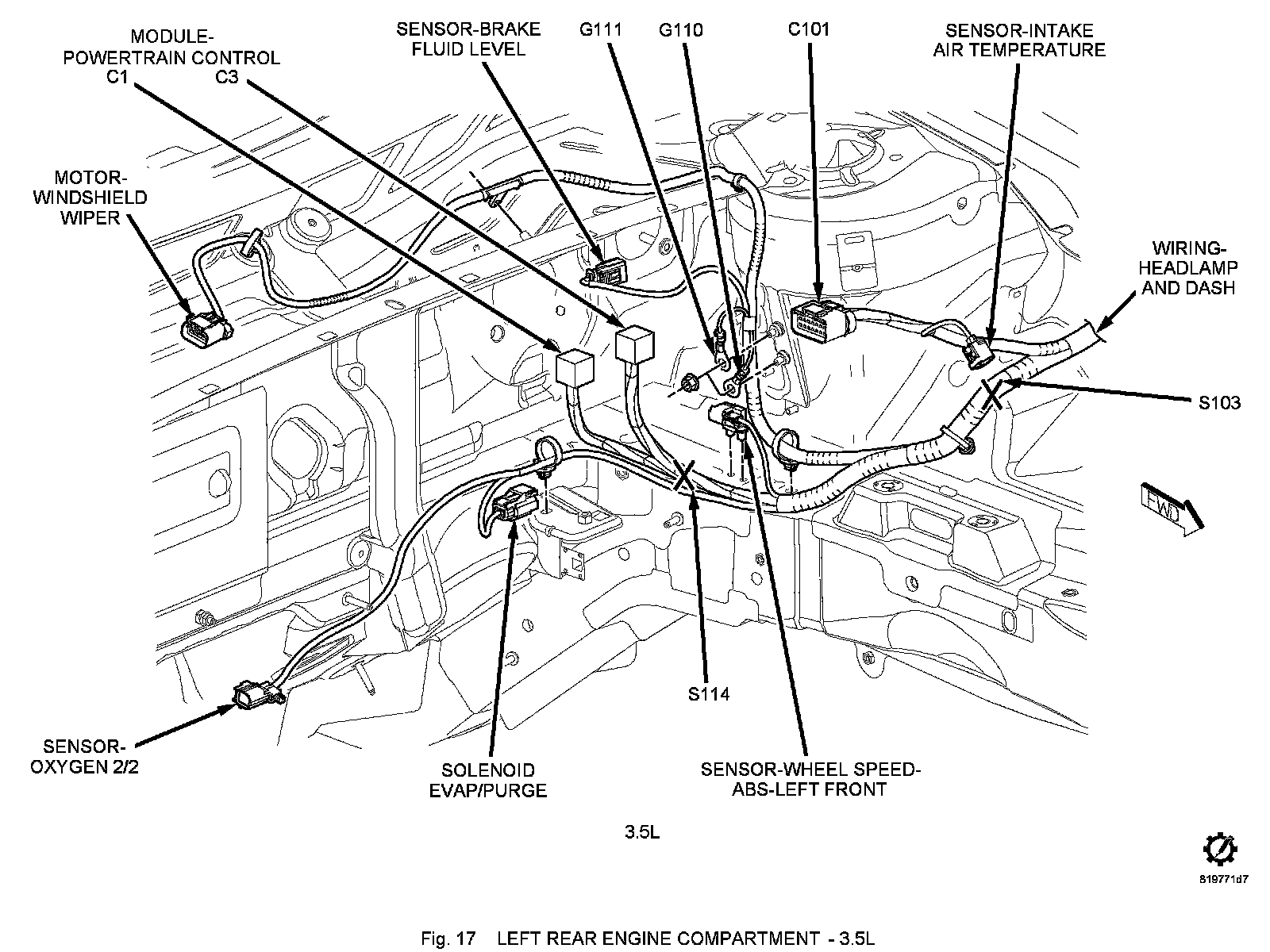

Component Location - 17

Fig. 17:
