Actuator-Recirculation Door

Component ID: 3

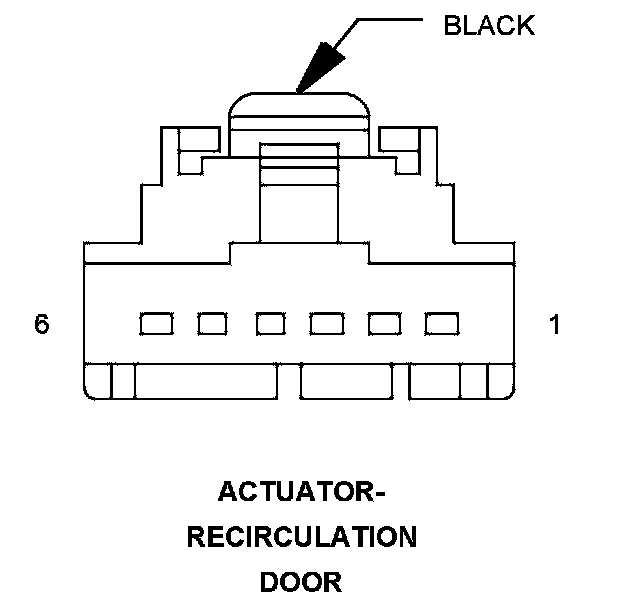

Component : ACTUATOR-RECIRCULATION DOOR

Connector:
Name : ACTUATOR-RECIRCULATION DOOR
Color : BLACK
# of pins : 6




Pin Description Circuit
1 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
Pin Description Circuit
1 COMMON DOOR DRIVER C34 20DB/LB
2 - -
3 - -
4 - -
5 - -
6 COMMON DOOR DRIVER C34 20DB/LB
6 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN

Component Location - 37




Component Location - 39




Component Location - 40

Fig. 40:

Component Location - 42

Fig. 42:
