Actuator-Mode Door

Component ID: 2
Component : ACTUATOR-MODE DOOR

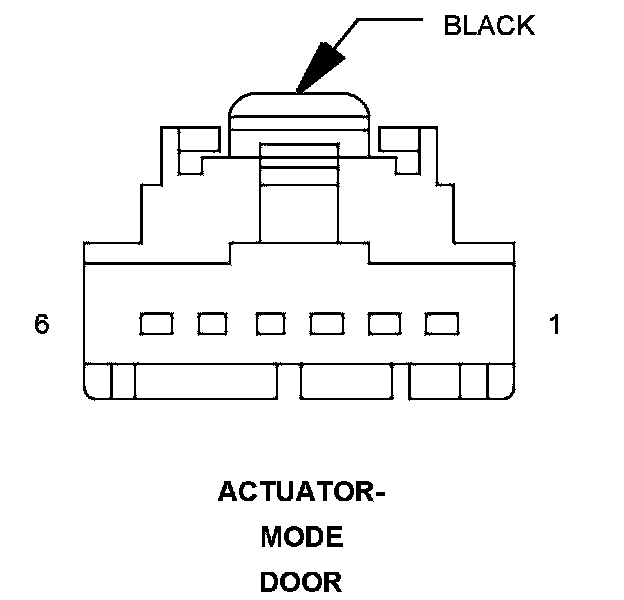

Connector:
Name : ACTUATOR-MODE DOOR
Color : BLACK
# of pins : 6




Pin Description Circuit
1 MODE DOOR DRIVER (A) C35 20LB/OR
2 - -
3 - -
4 - -
5 - -
6 COMMON DOOR DRIVER C34 20DB/LB
