Actuator-Blend Door

Component ID: 1
Component : ACTUATOR-BLEND DOOR

Connector:

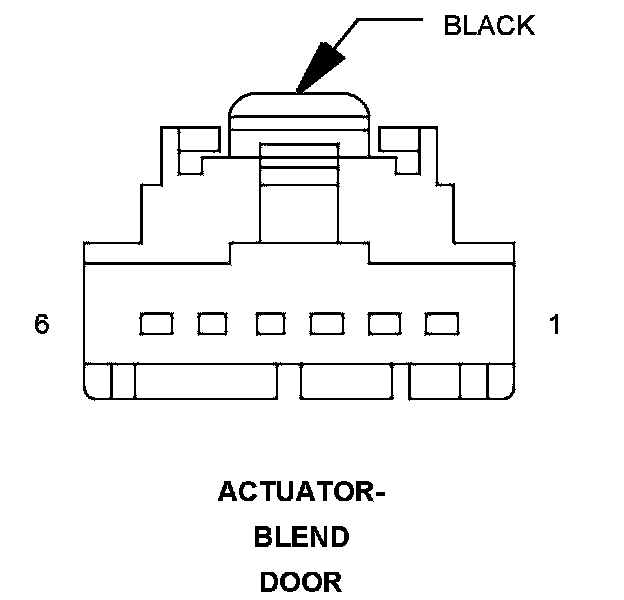

Name : ACTUATOR-BLEND DOOR
Color : BLACK
# of pins : 6




Pin Description Circuit
1 COMMON DOOR DRIVER C34 20DB/LB
2 - -
3 - -
4 - -
5 - -
6 BLEND DOOR DRIVER C61 20DB/LG

Component Location - 35




Component Location - 36

Fig. 36:

Component Location - 42

Fig. 42:
