Accelerator Pedal Position Sensor

Component ID: 338
Component : SENSOR-ACCELERATOR PEDAL POSITION

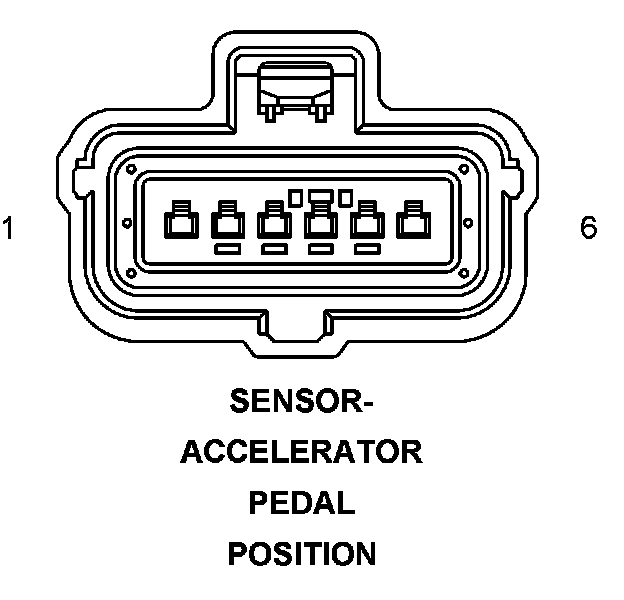

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color :
# of pins : 6




Pin Description Circuit
1 APP SIGNAL 2 K29 20WT/BR
2 APP SENSOR GROUND 2 K400 20BR/VT
3 5 VOLT SUPPLY F856 20YL/PK
4 APP SIGNAL 1 K23 20BR/WT
5 APP SENSOR GROUND 1 K167 20BR/YL
6 5 VOLT SUPPLY F855 20PK/YL

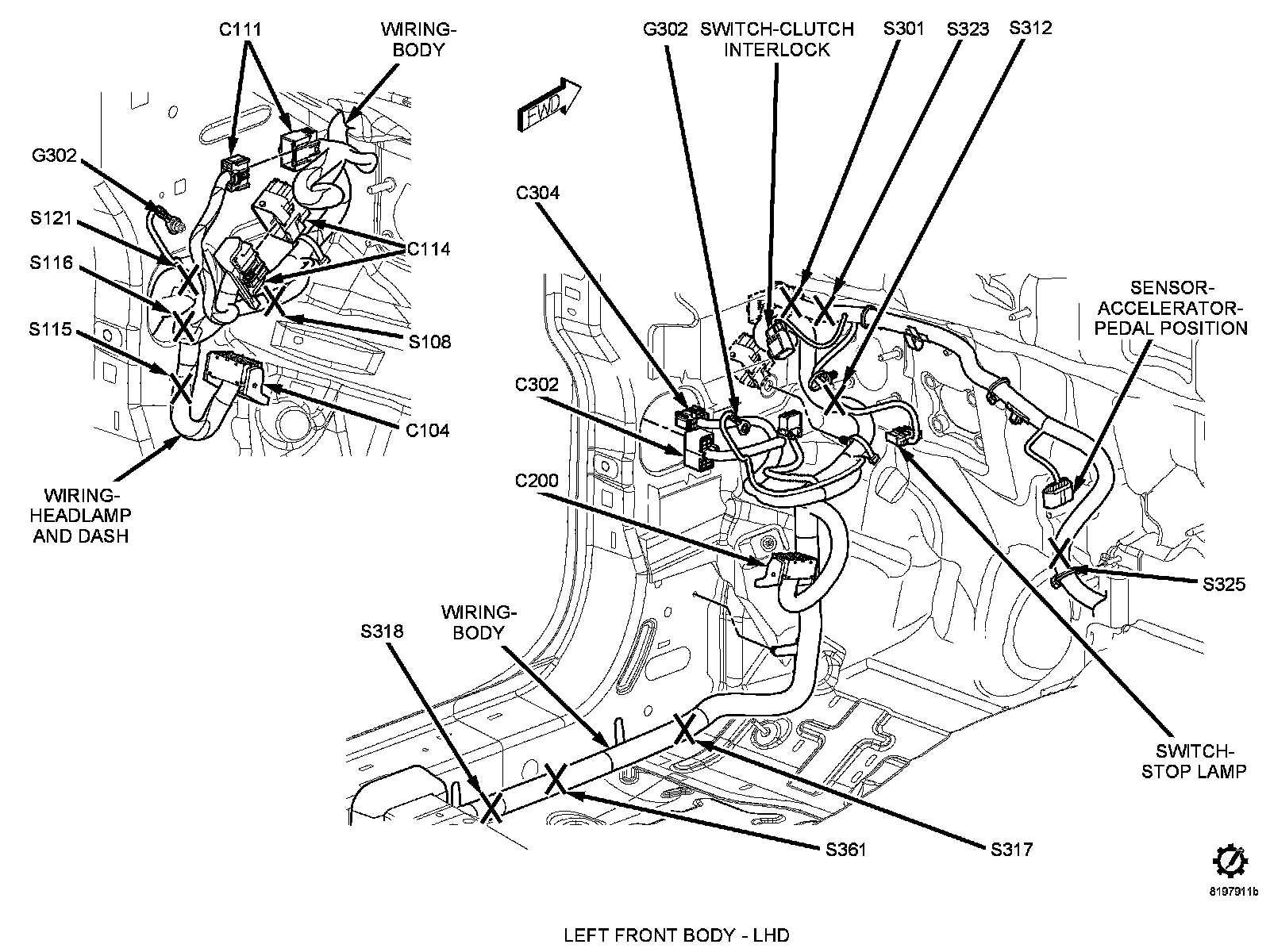

Component Location - 53

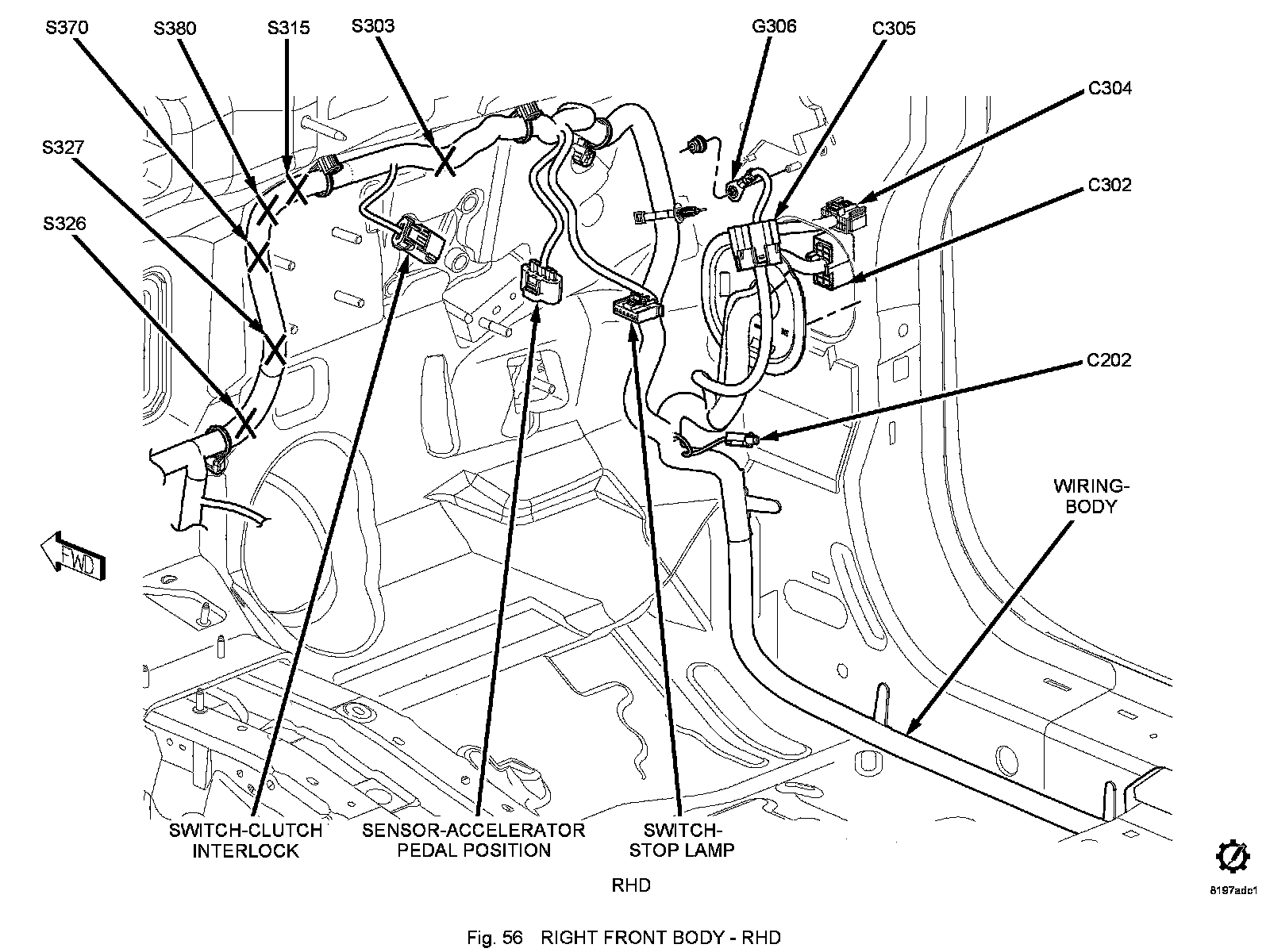

Component Location - 56

Fig. 56:
