Installation

INSTALLATION - FRONT
1. Set seat cushion pan into place.





2. Install wire harness fasteners to cushion frame.

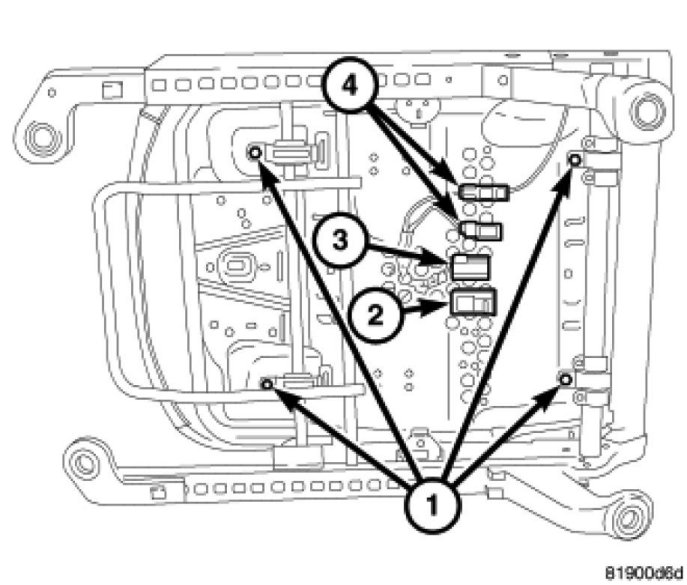

3. Install seat pan cushion fasteners (1). Tighten to 11 Nm (8 ft.lbs.)

4. Connect switch wire connectors (2, 3, and 4) to the cushion side shield, if equipped.

5. Install seat back.

6. Install cushion side shields.

7. Install seat in vehicle.
