Removal

REMOVAL
1. Remove seat from vehicle.





2. If equipped, remove recliner handle.

3. Remove side shield side cover (4), seatbelt anchor bolt (3), and seat belt (2), from side cover (1).

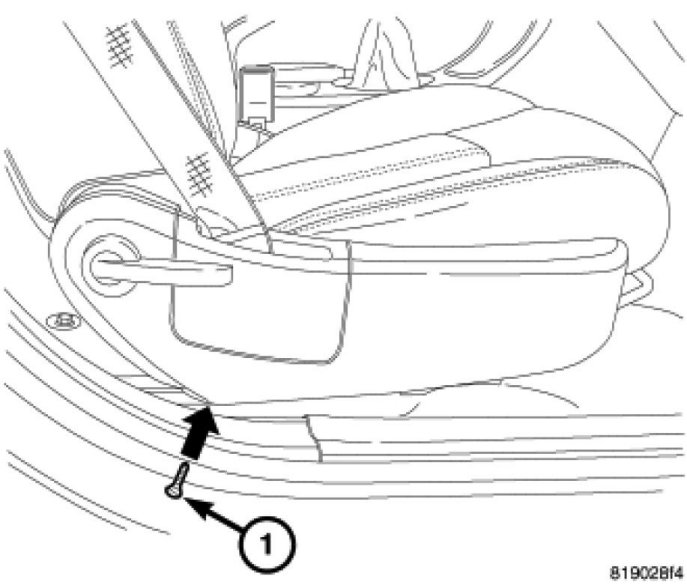

4. Remove screw (1) attaching seat cushion side shield to the bottom and side of seat cushion.

5. Remove shield from seat

6. Disconnect switch wire connectors, if equipped.

7. Remove seat switches, if equipped.
