Removal

REMOVAL - FRONT SEAT CUSHION COVER




1. Remove seat from vehicle.

2. Remove front seat cushion side shields.

3. Remove seat back.

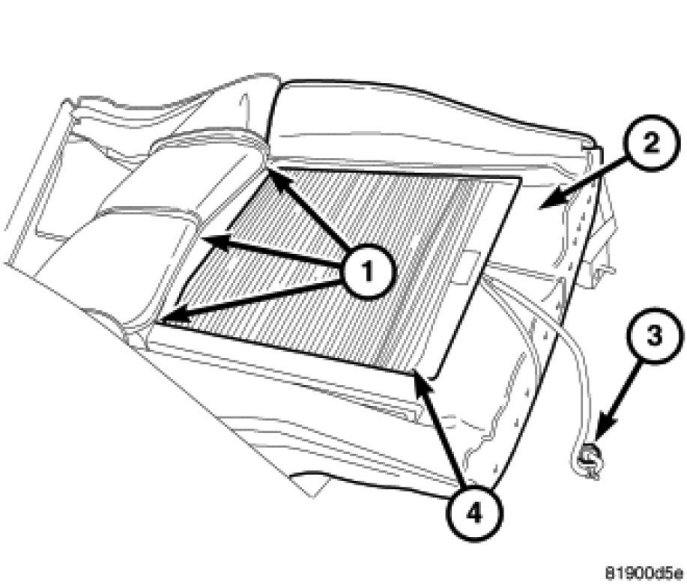

4. Remove seat cushion bolts (1).

5. Disconnect wire harness fasteners from cushion pan.





6. Disengage J-strap attaching seat cover from the seat cushion frame.





7. Pull cover off to the hog rings (1).

8. Cut hog rings attaching seat cover seat cushion.

9. Remove seat cushion cover from seat cushion.
