Installation

INSTALLATION - FRONT SEAT CUSHION COVER

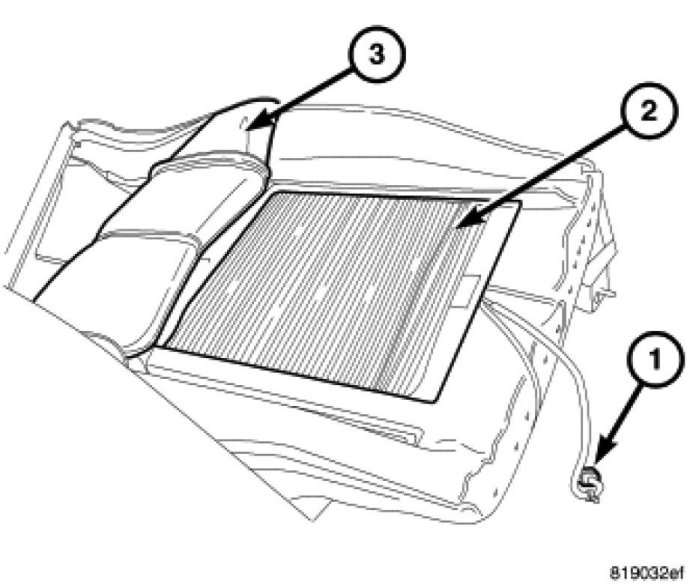

1. Position seat cover (3) on cushion while being careful not to damage heating element (2) and connector, if equipped.

2. Align seat cover with cushion alignment indentations

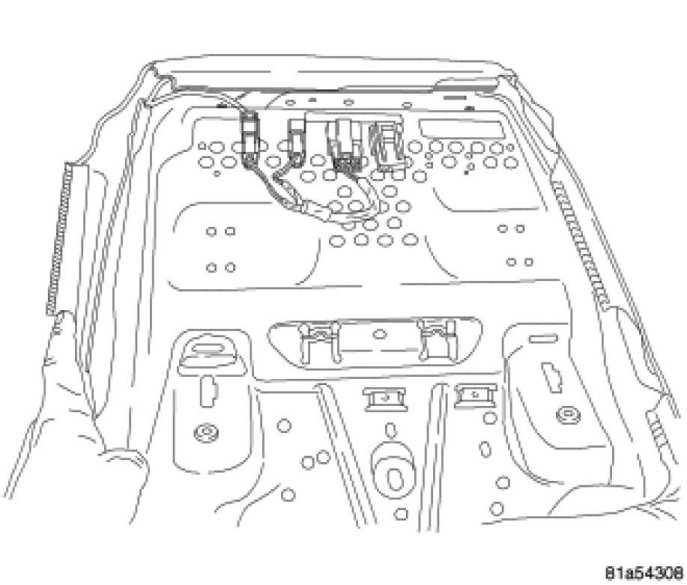

3. Install hog rings.





4. Engage J-strap attaching seat cover to front of seat cushion frame.

5. Install wire harness fasteners to cushion pan.

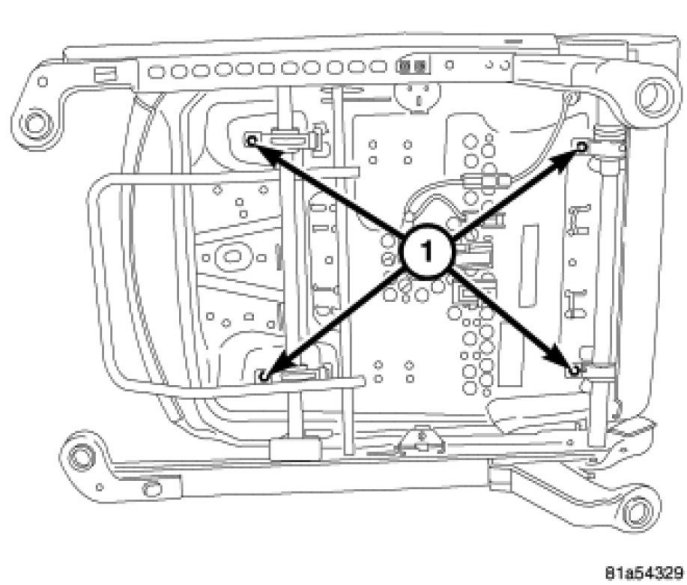

6. Install seat cushion bolts (1).

7. Install seat back.

8. Connect switch wire connectors to the cushion side shield, if equipped.

9. Install cushion side shields.

10. Install seat in vehicle.
