Installation

INSTALLATION




1. Position seat back onto seat adjuster.

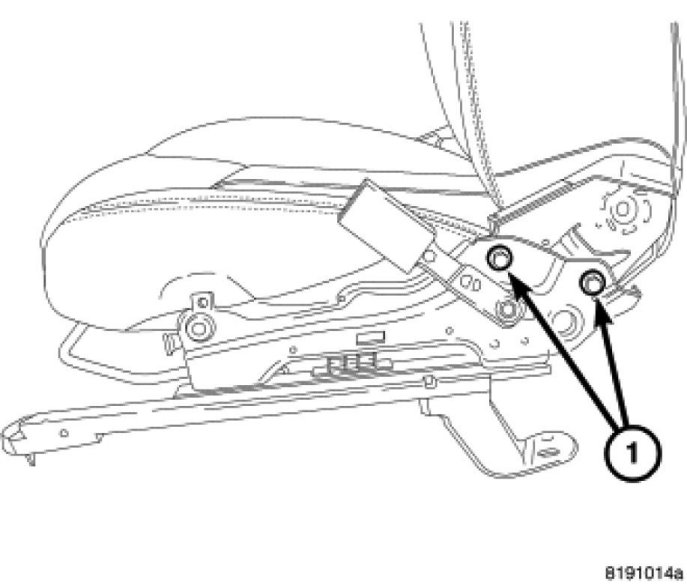

2. Install both pivot bolts (1) and tighten 40 Nm (30 ft. lbs.).


NOTE: Do not reuse the recliner assembly attaching bolts.

3. Connect electrical connectors if equipped.

4. Install seat cushion side shields.

5. Install seat in vehicle.
