Sunroof / Moonroof Motor: Diagrams

Component ID: 208

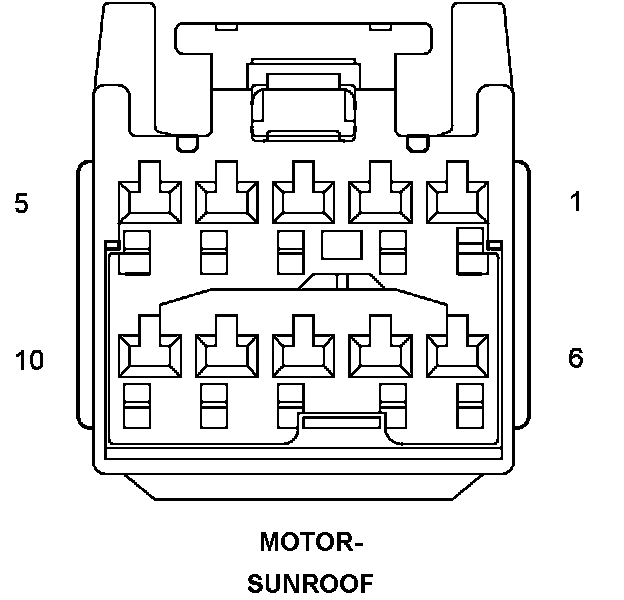

Component : MOTOR-SUNROOF

Connector:
Name : MOTOR-SUNROOF
Color :
# of pins : 10




Pin Description Circuit
1 GROUND Z907 16BK
2 SUNROOF SWITCH SUPPLY Q6 16OR/LG
3 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/DG
4 SUNROOF VENT SWITCH SENSE Q4 16OR/YL
5 SUNROOF OPEN SWITCH SENSE Q3 16OR/TN
6 FUSED B(+) A927 16RD/WT
7 - -
8 - -
9 - -
10 SUNROOF CLOSE SWITCH SENSE Q5 16OR/LB

Component Location - 48




Component Location - 49
