Installation

INSTALLATION

NOTE: MK Sunroof assembly shown, JS similar.

1. Install the trough guides.

2. Install the drive motor.

3. Install the sunshade.

4. Install the glass panel.

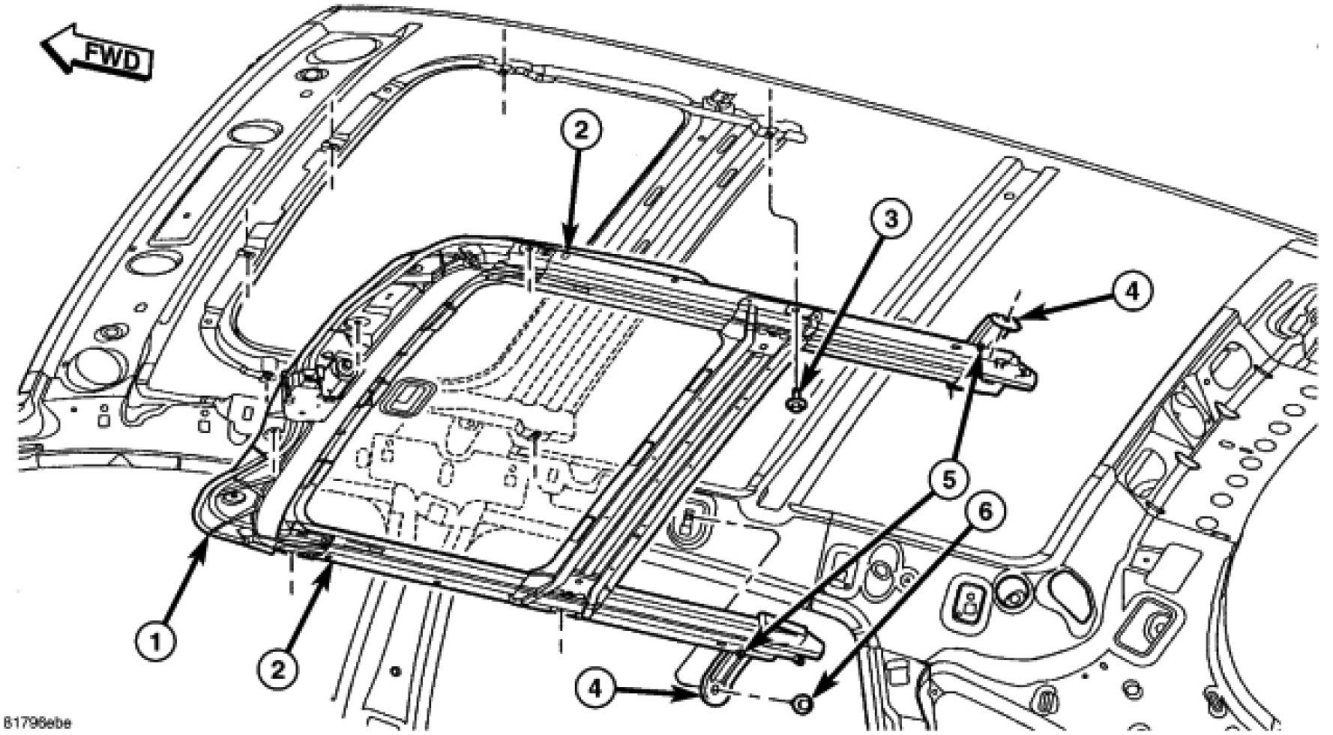

5. Raise rear end of sunroof module assembly (1) and guide into position and start the six fasteners (3).

6. Visually line up the alignment guide holes (2) with the guide holes in the roof of the vehicle.

7. Tighten the six fasteners (3) to 9 Nm (80 in. lbs.).

8. Tighten the two side bracket fasteners (6) to 9 Nm (80 in. lbs.).

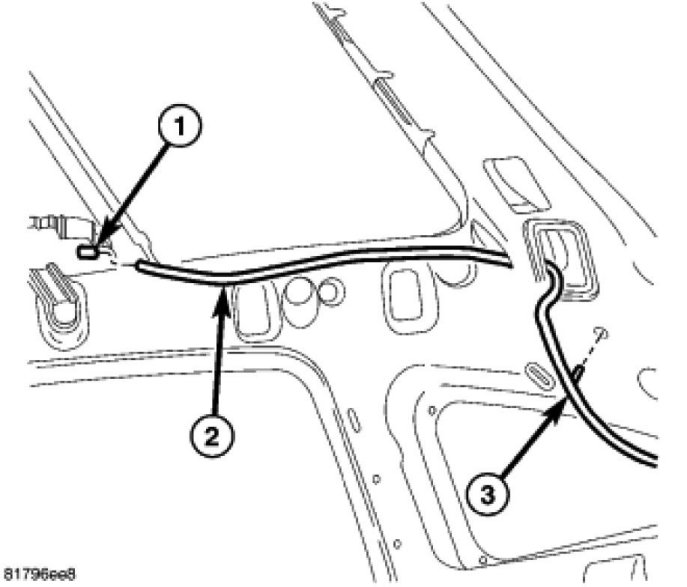

9. Connect the drain tubes (2) to the assembly (1).

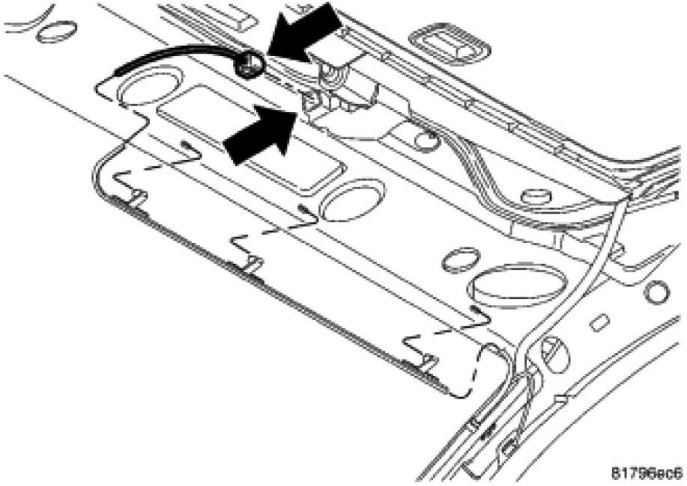

10. Connect the electrical connector.

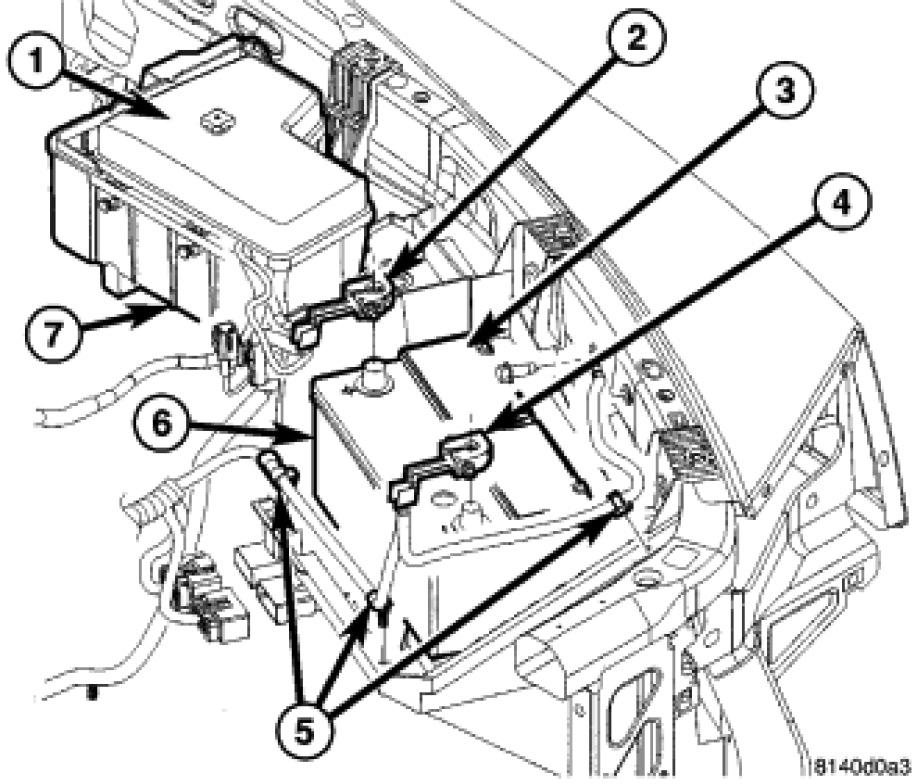

11. Connect battery negative cable (4).

12. Test sunroof operation, adjust glass as necessary.

13. Partially install the headliner and connect the sunroof wiring electrical connectors.

14. Temporarily install sunroof switch and perform the sunroof motor teach procedure.

15. Raise headliner installation.

16. Verify correct sunroof operation.
