Rear Door Trim Panel

REMOVAL

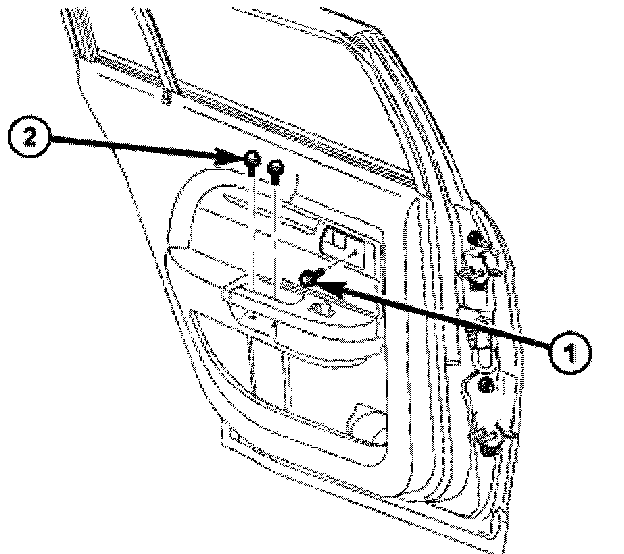

1. teners (2) located near pull handle.
2. Remove fastener (1) near inside door handle.

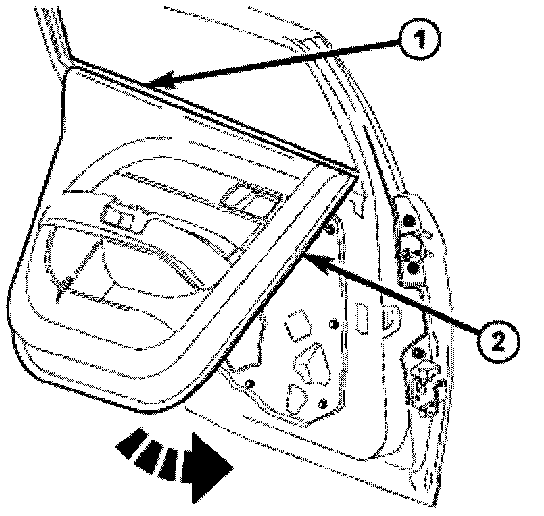

3. Using trim stick C-4755 or equivalent, gently pry upward on door trim panel disengaging trim panel (2) from door run (1).
4. Disconnect the power window switch if equipped.
5. Remove door links from inside handle.
6. Remove trim panel from door assembly.
