Installation

INSTALLATION




1. Feed center shoulder belt through opening in shelf panel.

2. Place rear shelf trim into position.

3. Push trim rearward to engage clip attaching rear shelf trim to shelf panel.

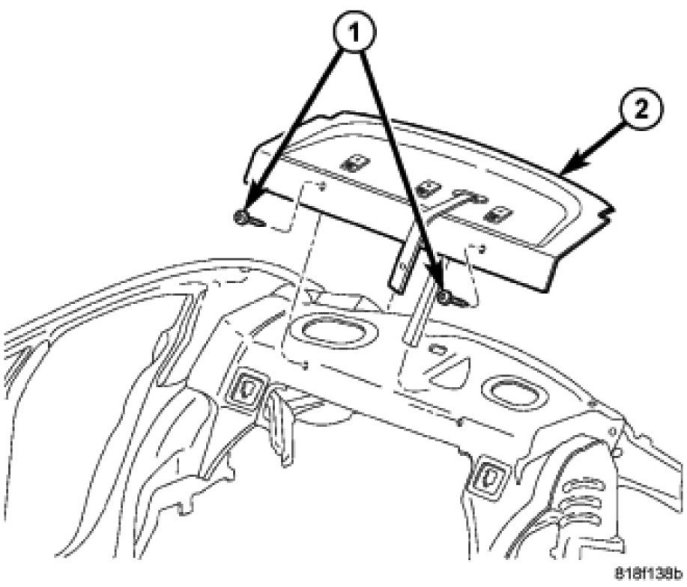

4. Install push-in fasteners (1) attaching rear shelf trim to shelf panel.


CAUTION: Do not pull on child tether covers or use as a handle for installation of panel.

5. Install close out trim panel.

6. Install C-pillar trim panels.

7. Connect the center shoulder seat belt.

8. Fold seat backs up.
