Headliner - Installation

INSTALLATION

NOTE: Cover the floor of vehicle with a dirt free protective sheet of paper or plastic to prevent dirt from soiling headliner.


NOTE: Please use clean gloves or ensure hands are clean before removing.

1. With the help of an assistant, guide headliner rearward through passenger door fabric side facing driver door while minimizing contact to the door opening.

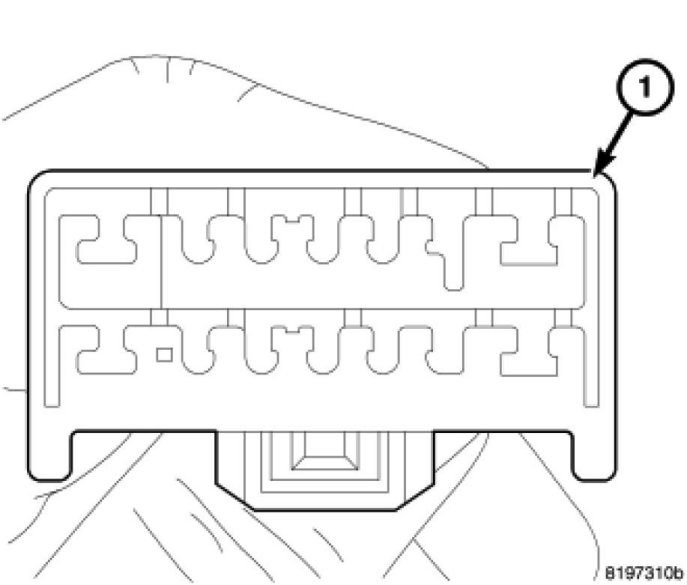

2. Through glove box opening, install terminals into headliner connector (1).

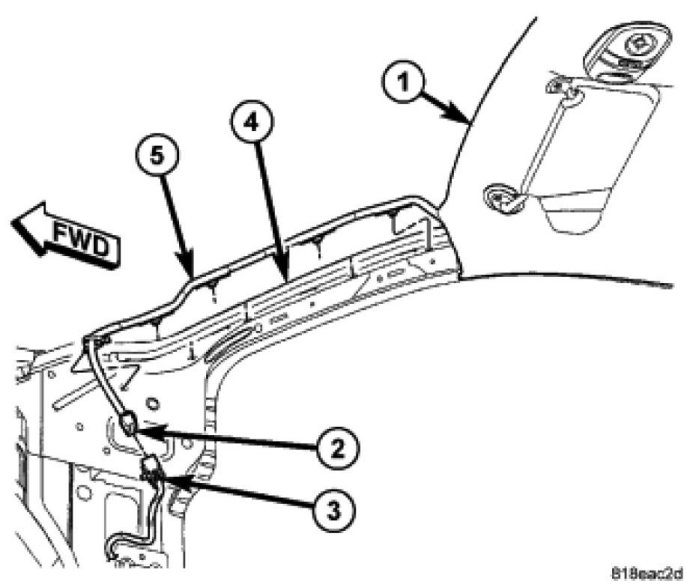

3. Connect headliner connector along A-pillar to connector.





4. Slowly raise headliner (2).





5. If equipped with sunroof, ensure headliner (2) seats to sunroof opening (1).

6. Install rear push pins (3).

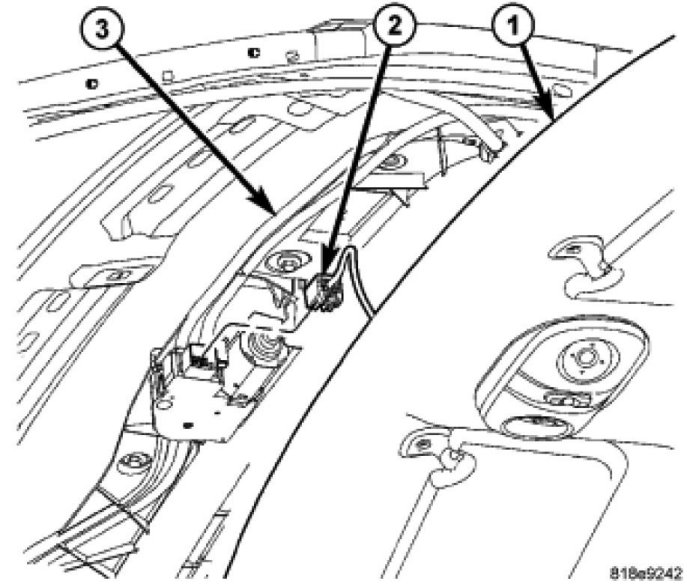

7. If equipped, connect sunroof connector (2) if equipped.

8. Install sunvisor supports.

9. Install sunvisors.

10. Install front and rear assist handles and coat hooks if equipped.

11. Install dome lamp.

12. Install glove box.

13. Install reading lamp.

14. Install center console.

15. Install A-pillar trim.

16. Install B-pillar trim.

17. Install C-pillar trim.

18. Install door sill trim panel.

19. Install front driver/passenger seat and rear cushion.
