Drink Holders: Locations

Component ID: 16

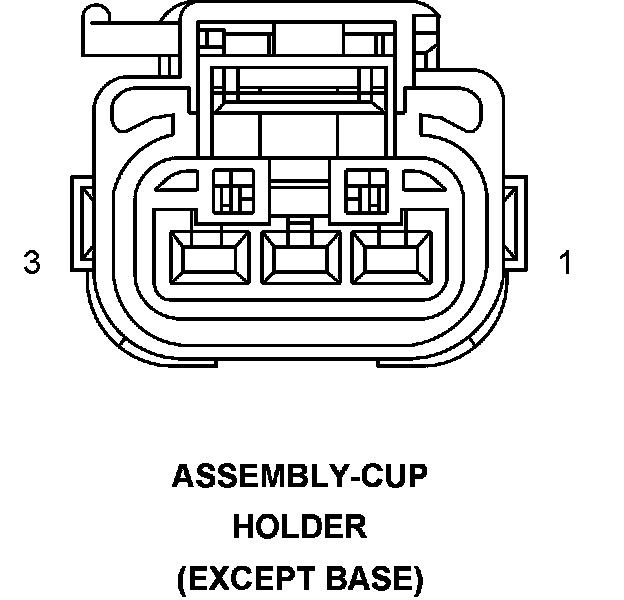

Component : ASSEMBLY-CUP HOLDER

Connector:
Name : ASSEMBLY-CUP HOLDER
Color :
# of pins : 3
Qualifier : (EXCEPT BASE)




Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
2 PANEL LAMPS DRIVER E12 20OR/GY
3 GROUND Z907 20BK

Component Location - 52

Fig. 52:
