Instrument Panel Pad - Installation

INSTALLATION
1. Place instrument panel top cover in position on vehicle.

2. Push top cover forward to engage hooks to hold front of top cover to instrument panel.

3. Pull top cover rearward as you firmly push down and snap into place.

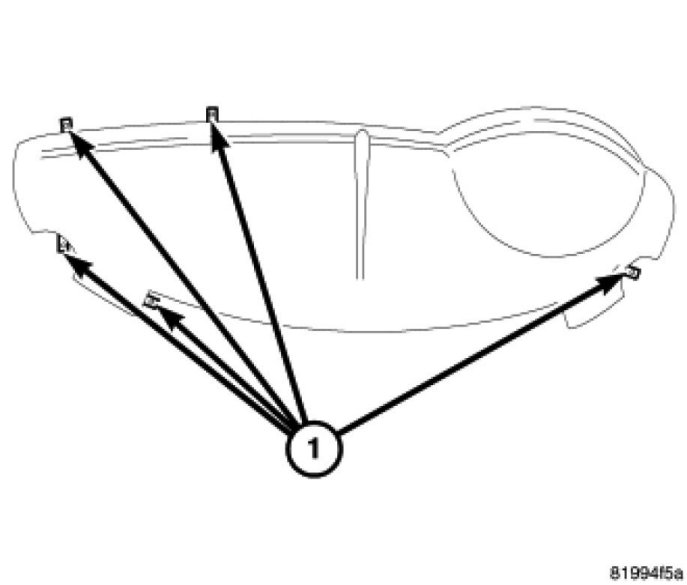

4. Install five top pad fasteners. Three located at fence, and two located beneath the passenger bezel.

5. Install passenger bezel ensuring bezel clips snap firmly in place.

6. Install passenger bezel applique ensuring clips snap firmly in place.

7. Install air bag, if equipped.

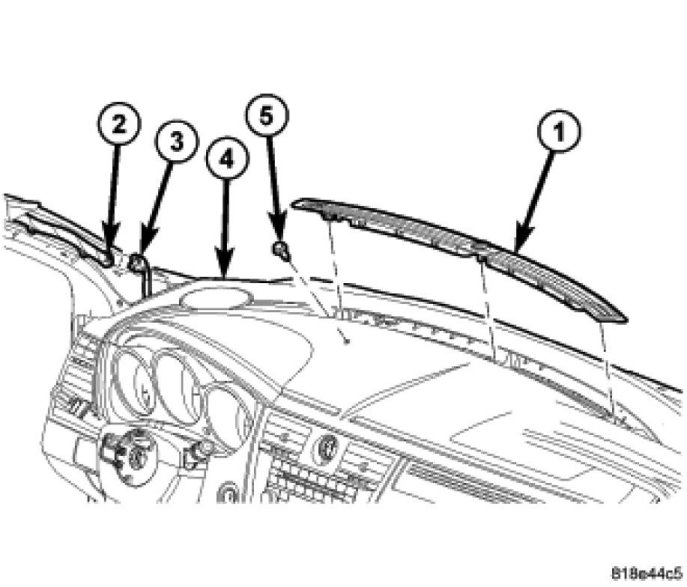

8. Install defroster grille (1).

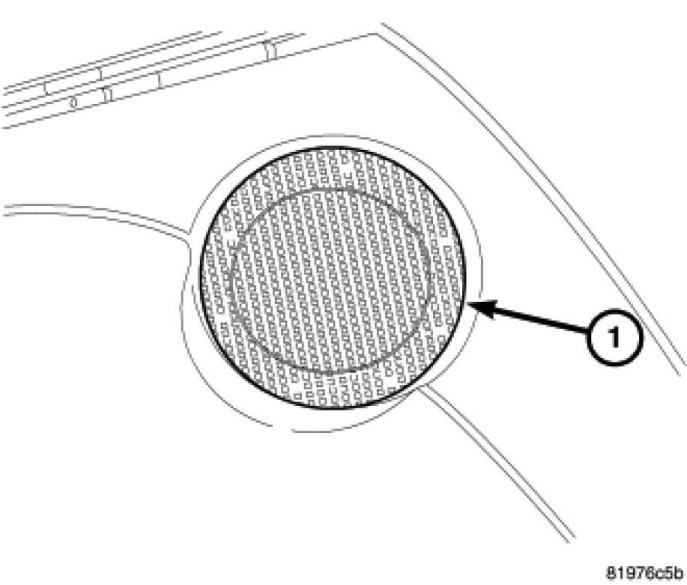

9. Install speaker grille (1) ensuring tabs snap firmly in place.

10. Install A-pillar trim.
