Instrument Panel - Installation

INSTALLATION

NOTE: Left hand shown. Right hand similar.

1. Before proceeding with the following repair procedure, review all warnings and cautions.

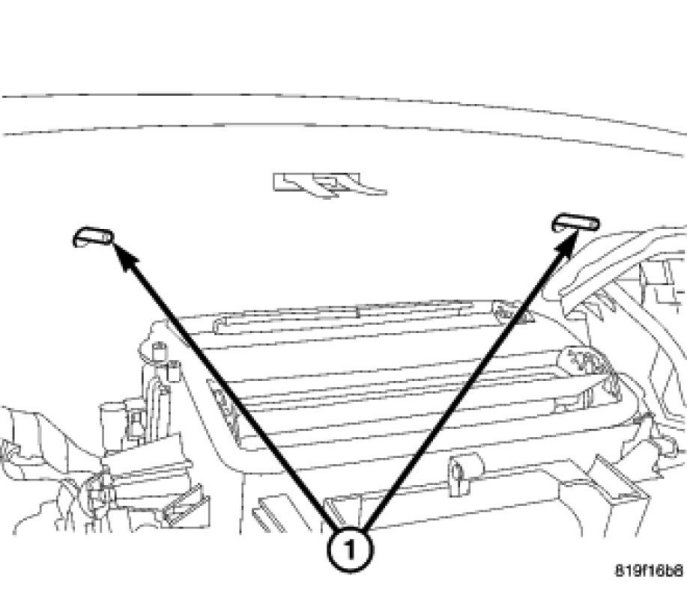

2. With the help of an assistant, install the I/P assembly into the vehicle and position onto the alignment pins (1).

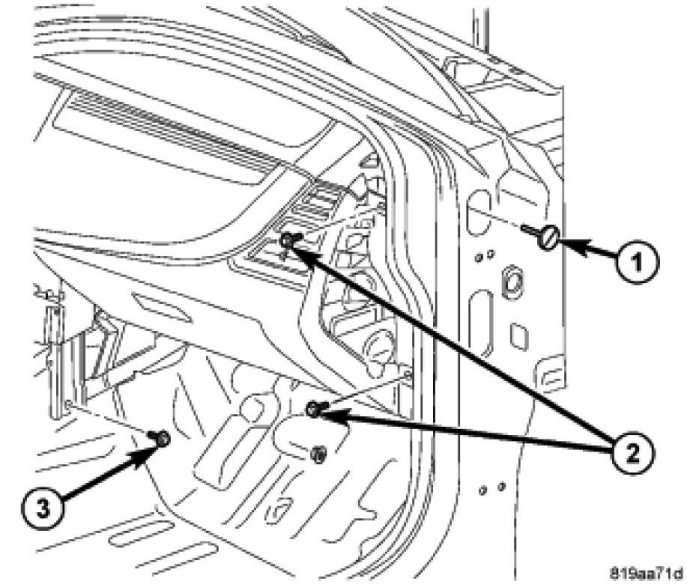

3. Install instrument panel fasteners (1, 2, and 3) into driver and passenger sides of vehicle.

4. Install fence fasteners.

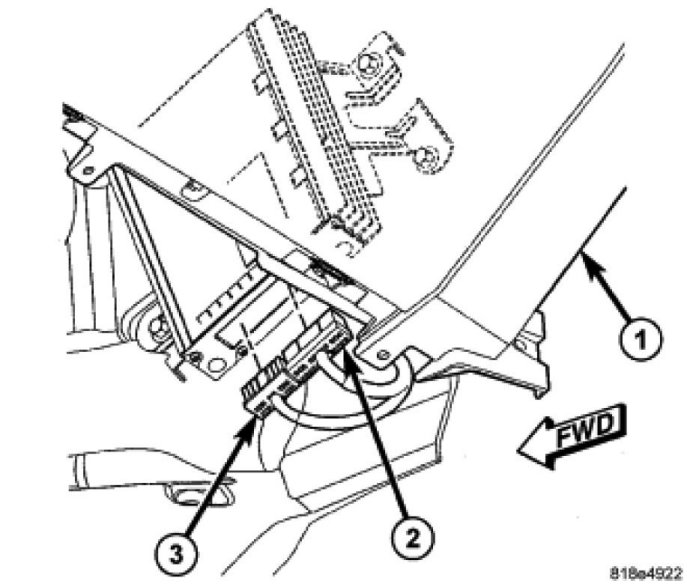

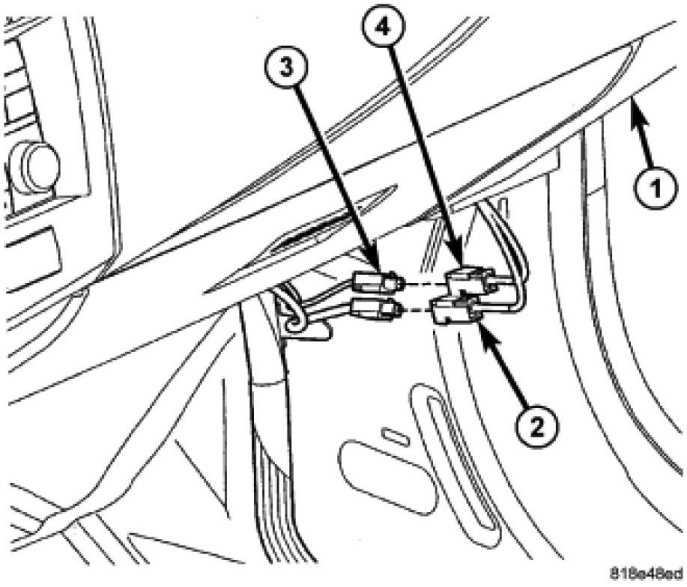

5. Connect instrument panel module connectors (2 and 3).

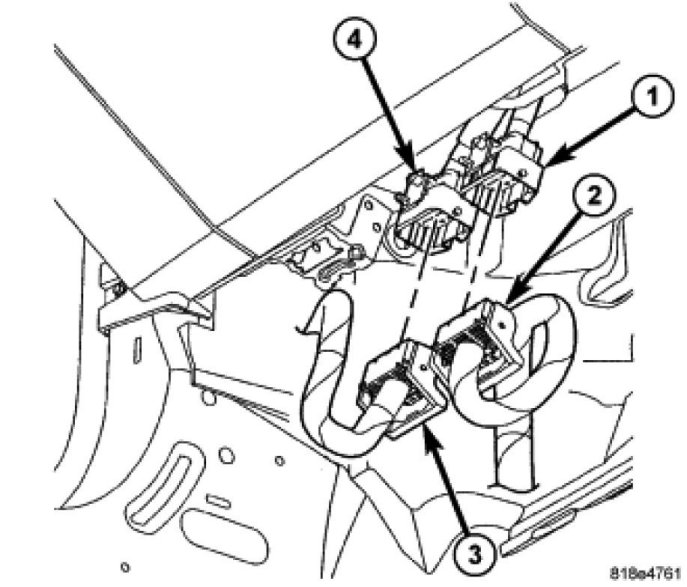

6. Connect instrument panel wiring harness connectors.

7. Snap center outlets into place

8. Install top pad ensuring tabs snap firmly in place.

9. Install defroster grille ensuring tabs snap firmly in place.

10. Install speaker.

11. Install speaker grilles ensuring tabs snap firmly in place.

12. Install passenger side airbag, if equipped.

13. Install A-pillar trim.

14. Install left and right end covers.




15. Install bezel switch (2) and connect electrical connector.

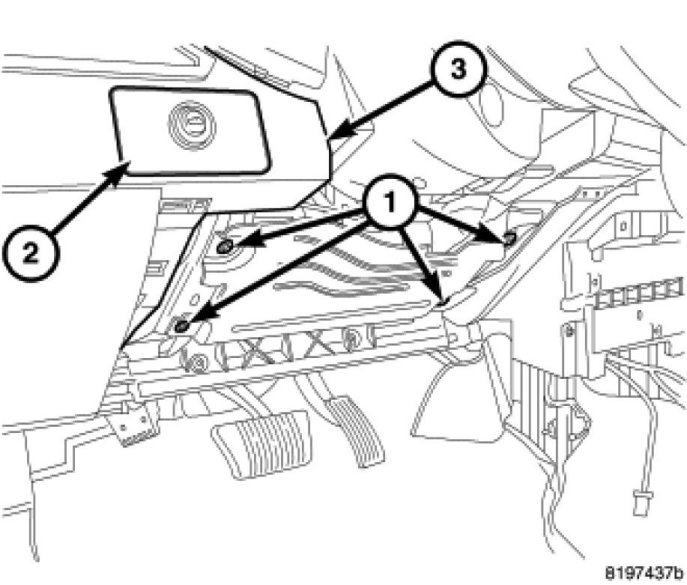

16. Install knee bolster screws (1).

17. Install steering column cover.





18. Insert steering wheel and column into steering wheel opening.

19. Install lower coupling steering bolt (3) and install the intermediate shaft.

20. Connect the transmission interlock and wire connector.

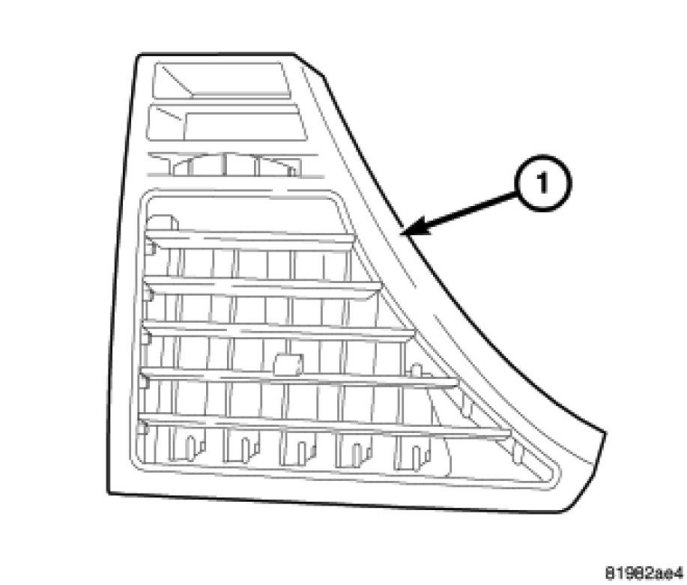

21. Install defroster outlets.

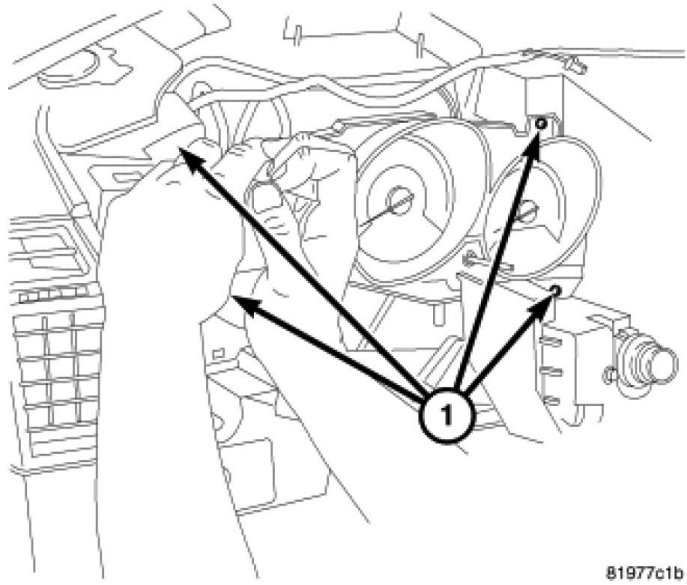

22. Connect cluster wire connectors and install screws (1).

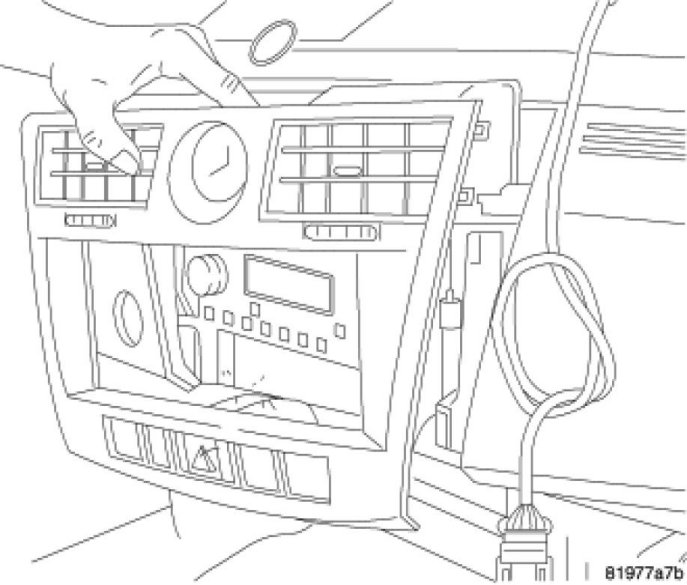

23. Snap cluster bezel into place ensuring proper seat.

24. Snap ignition trim ring bezel firmly into place.

25. Install radio.





26. Connect antenna connectors.





27. Snap radio bezel firmly into place and connect wire connectors.

28. Install glove box.

29. Install center console.

30. Install console bezel.

31. Install left and right lower closeout panels.

32. Install front seats.
