Removal

REMOVAL

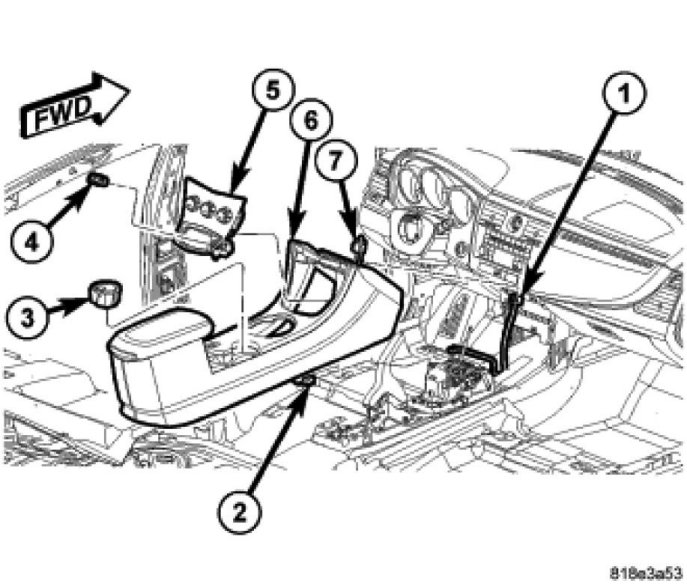

NOTE: Chrysler shown, Dodge similar.





1. Remove console bezel.

2. Remove shift knob and shift bezel.

3. Remove two fasteners (6).

4. Remove four fasteners (5)

5. Disconnect console housing wire connector (7) and instrument panel connector (1).

6. Pull parking brake rearward.

7. Remove center console from vehicle.
