Removal

REMOVAL




1. Remove door sill trim. Refer to Trim Panel.

2. Remove rear seat cushion.

3. Remove front seats.

4. Remove amplifier on passenger side of floor pan, if equipped.

5. Remove B-pillar trim panels as necessary to clear carpet.

6. Remove cowl trim panels.

7. Remove center console.

8. Pull carpet from behind brake pedal, accelerator pedal, and HVAC.

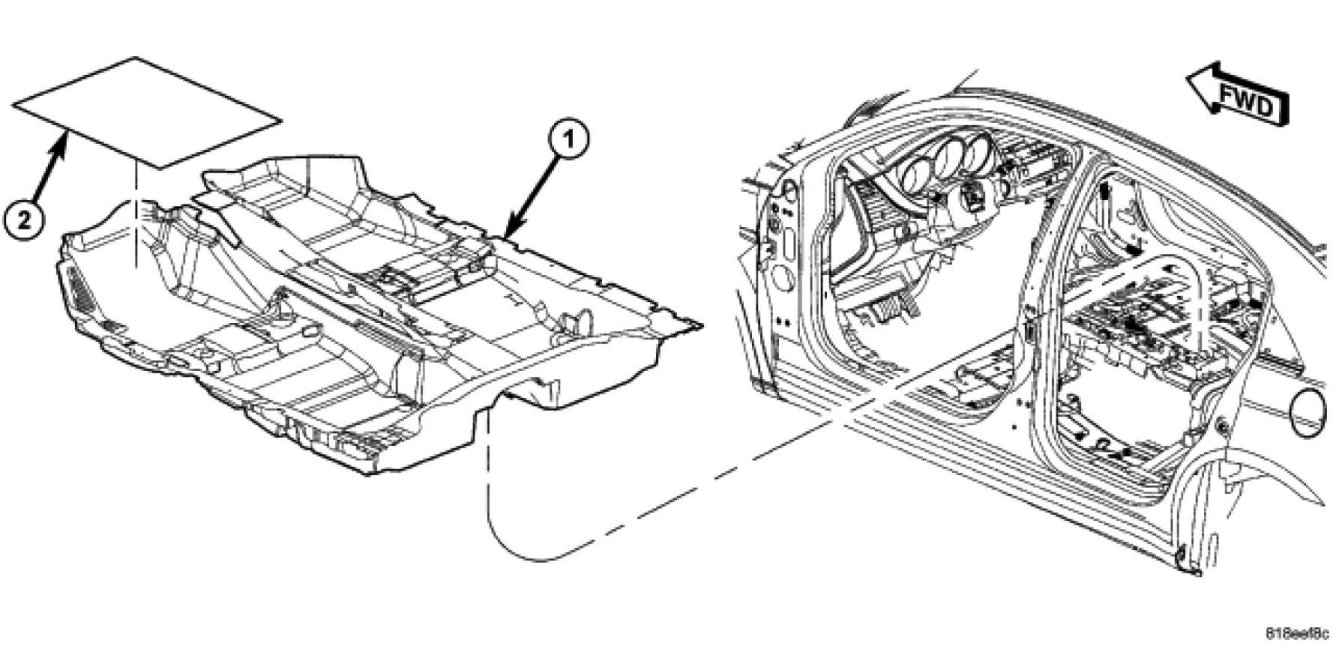

9. Fold carpet (1) to center of vehicle.

10. Remove carpet (1) from vehicle through passenger door opening.
