Installation

INSTALLATION

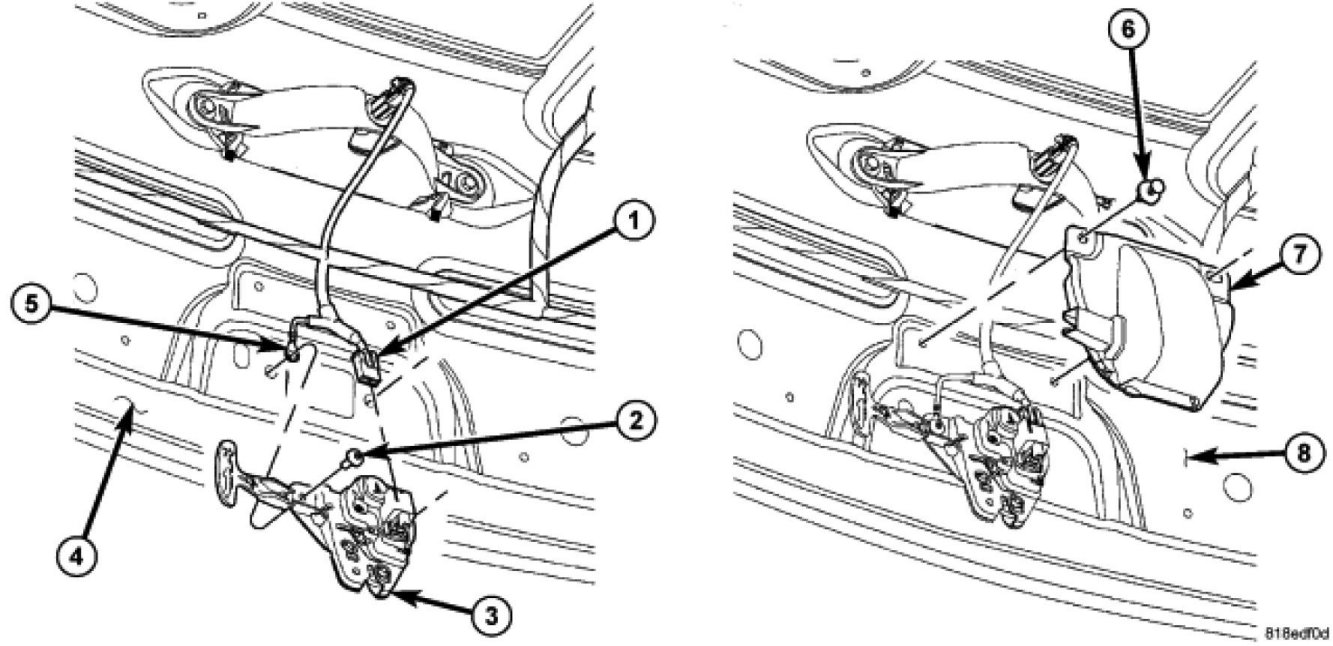

1. Position decklid latch (3) on vehicle.

2. Loosely install bolts (2) attaching decklid latch (3) to decklid.

3. Tighten bolts to 12 Nm (106 in. lbs.) torque.

4. Align decklid latch to marks made previously on decklid and tighten bolts.

5. Connect wire connectors to remote release solenoid, if so equipped.

6. Verify fit of decklid to deck panel (8) and decklid latch operation. Adjust as necessary.
