Installation

INSTALLATION

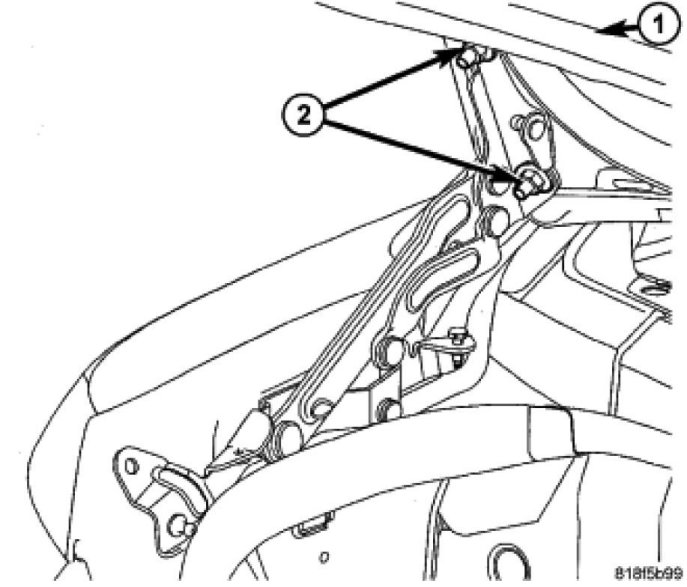

1. Position decklid on vehicle.

2. With aid of a helper, loosely install bolts attaching decklid to decklid hinge.

3. Align marks made on decklid previously to decklid hinge.

4. Tighten bolts attaching decklid to decklid hinge to 22.5 Nm (200 in. lbs.) torque.

5. Connect all wire connectors to decklid latch and install wire harness to decklid.

6. Verify fit of decklid to deck panel. Adjust as necessary.
