Removal

REMOVAL




1. Open and support door on a suitable lifting device.

2. Disengage wire connector at hinge B-pillar.

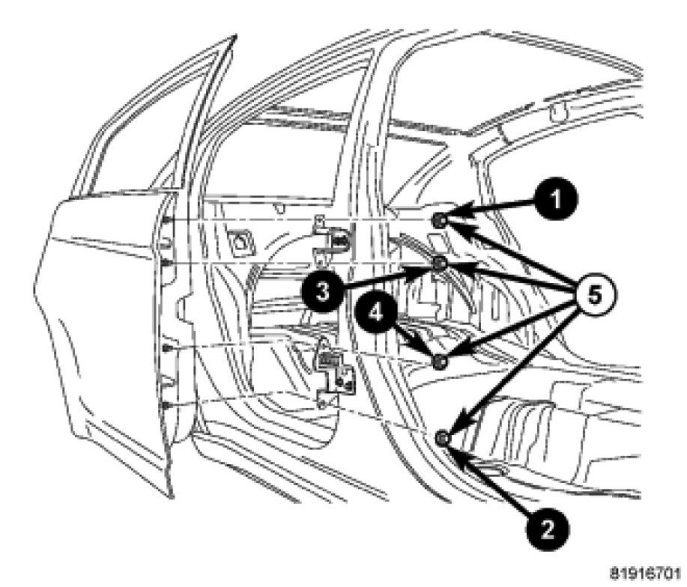

3. Remove nuts (5) attaching door studs to hinges.

4. Remove the door from vehicle.
