Removal

REMOVAL
1. Remove front fascia. Refer to Front Bumper.





2. Remove hood latch fasteners (1) and move hood latch out of way.

3. Remove left and right brace fasteners (2) and braces.

4. Remove left and right horn fasteners and horn.

5. Remove ambient temperature sensor from bumper reinforcement.

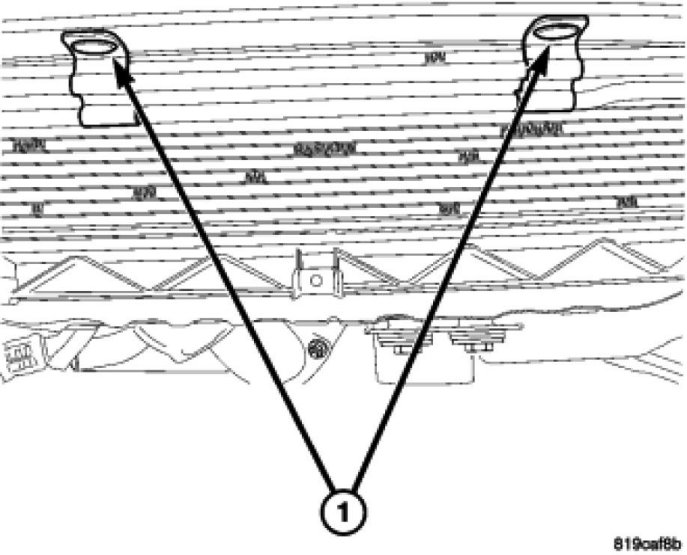

6. Remove coolant lines push pins from bumper reinforcement.

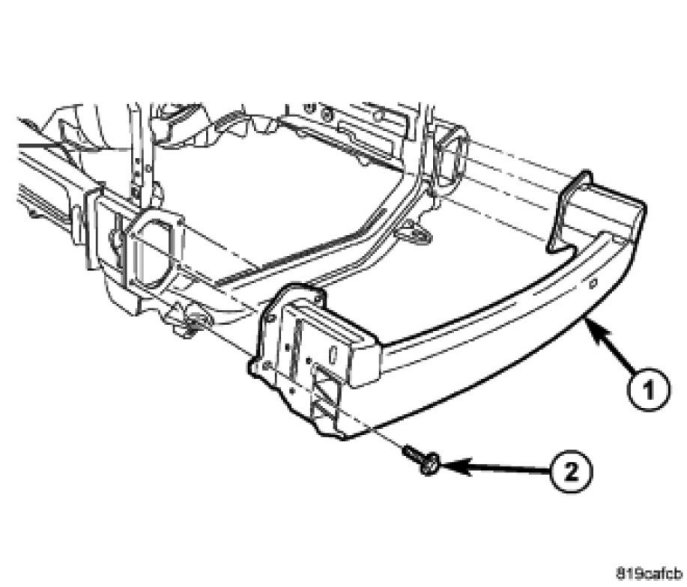

7. Remove bumper reinforcement fasteners and bumper from vehicle.
