Removal - JS-41

REMOVAL - JS-41
1. Release hood latch and open hood.

2. Remove air inlet duct.

3. Remove grille. Refer to Grille.

4. Hoist and support vehicle on safety stands.

5. Remove left and right splash shields.

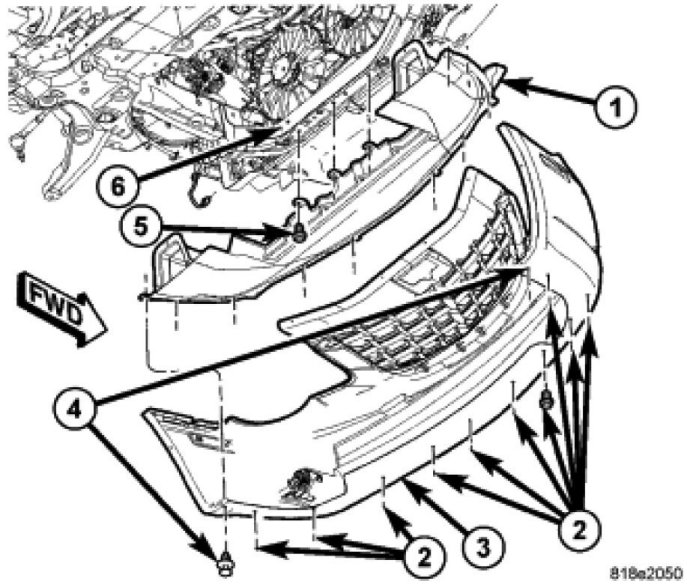

6. Remove lower fascia closeout panel (1) fasteners (5) from load beam (6).

7. Remove lower fascia closeout panel from fascia.

8. Disengage fog lamp wire connector and side marker connector from body harness, if equipped.





9. Remove fasteners (4) attaching fascia to fender on both sides.

10. Carefully, move clips (5) outward disengaging fascia from fender.

11. Remove fascia from vehicle.
