Speaker-Left Rear

Component ID: 391
Component : SPEAKER-LEFT REAR

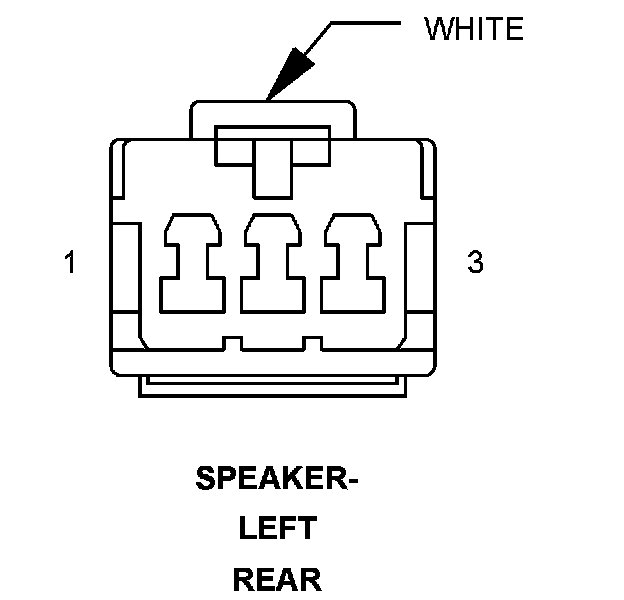

Connector:
Name : SPEAKER-LEFT REAR
Color : WHITE
# of pins : 3




Pin Description Circuit
1 LEFT REAR SPEAKER (-) X393 18DG/GY
2 - -
3 LEFT REAR SPEAKER (+) X303 18DG/TN

Component Location - 65




Component Location - 66
