Radio/Stereo: Diagrams

Component ID: 217
Component : RADIO

Connector:

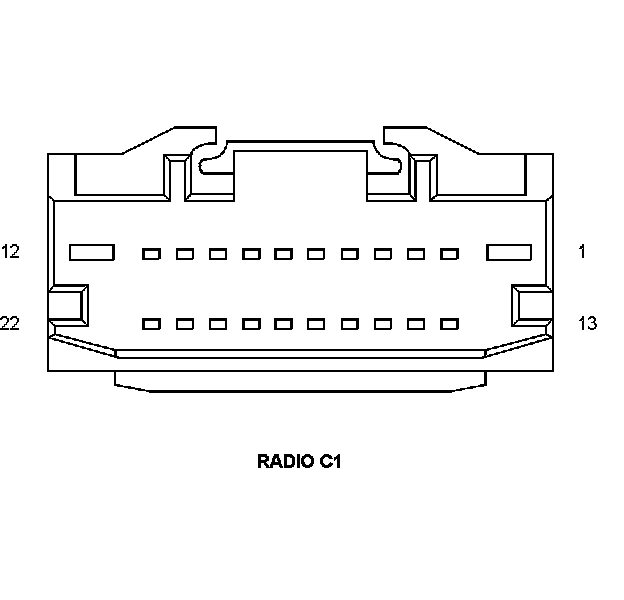

Name : RADIO C1
Color :
# of pins : 22




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A413 20RD/BR
2 CAN B BUS (-) D54 20WT
3 - -
4 - -
5 - -
6 - -
7 AMPLIFIED ANTENNA FEED X62 18GY/OR
8 LEFT REAR SPEAKER (+) X303 18DG/TN
8 RADIO LEFT AUDIO (+) X51 20DG/DB
9 LEFT REAR SPEAKER (-) X393 18DG/GY
9 RADIO LEFT AUDIO (-) X57 20DG/OR
10 RIGHT REAR SPEAKER (+) X304 18DG/BR
10 RADIO RIGHT AUDIO (+) X52 20GY/DB
11 RIGHT REAR SPEAKER (-) X394 18YL/GY
11 RADIO RIGHT AUDIO (-) X58 20GY/OR
12 GROUND Z912 18BK
13 CAN B BUS (+) D55 20WT/OR
14 - -
15 - -
16 - -
17 - -
18 - -
19 RIGHT FRONT SPEAKERS (+) X202 18DG/VT
20 RIGHT FRONT SPEAKERS (-) X292 18GY/LG
21 LEFT FRONT SPEAKERS (+) X201 18GY/VT
22 LEFT FRONT SPEAKERS (-) X291 18GY/YL

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Connector:

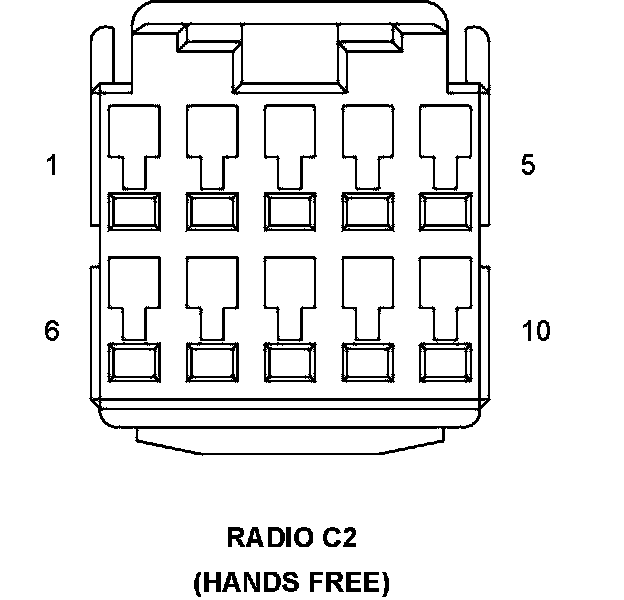

Name : RADIO C2
Color :
# of pins : 10
Qualifier : (HANDS FREE)




Pin Description Circuit
1 LEFT AUDIO OUTPUT X703 20DG/OR
Pin Description Circuit
1 MICROPHONE 2 IN (+) X722 20LB/DG
2 RIGHT AUDIO OUTPUT X704 20DG/YL
2 MICROPHONE 1 IN (+) X712 20DG/LB
3 - -
4 MICROPHONE FEED X793 20DG/YL
5 - -
6 COMMON AUDIO OUTPUT X795 20DG
7 MICROPHONE IN (-) X792 20LB/DG
8 SENSOR GROUND X835 20OR/GY
9 - -
10 - -

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Connector:
Name : RADIO C3
Color :
# of pins : 22
Qualifier : (DVD)




Pin Description Circuit
1 AUDIO RETURN 3 X552 22GY/VT
2 - -
3 - -
4 - -
5 - -
6 VIDEO SIGNAL 1 X534 22GY/LB
7 VIDEO COMMON 1 X535 22GY/OR
8 VIDEO SHIELD 1 X536 22
9 VIDEO SIGNAL 2 X541 22GY/LB
10 VIDEO COMMON 2 X542 22GY/OR
11 VIDEO SHIELD 2 X543 22
12 AUDIO RETURN 2 X546 22GY/DG
13 AUDIO LEFT 3 X551 22DG/VT
14 AUDIO RIGHT 3 X550 22DG/YL
15 - -
16 - -
17 - -
18 AUDIO LEFT 1 X539 22DG/TN
19 AUDIO RETURN 1 X540 22GY/TN
20 AUDIO RIGHT 1 X538 22DG/WT
21 AUDIO LEFT 2 X545 22DG/LB
22 AUDIO RIGHT 2 X544 22DG/DB

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Connector:

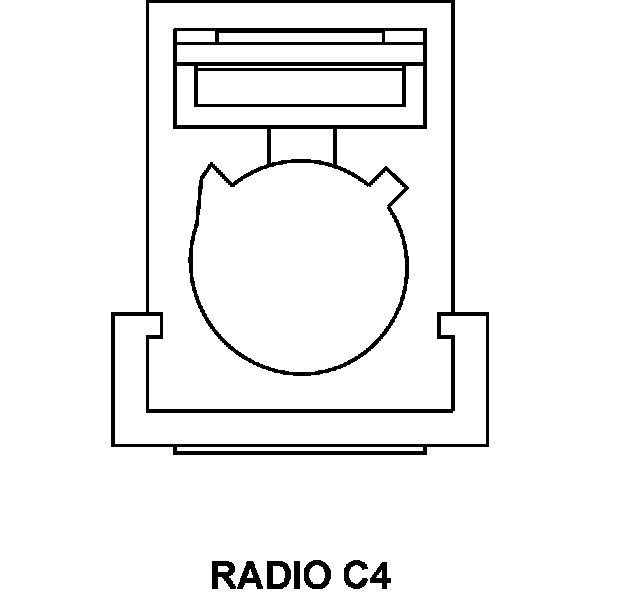

Name : RADIO C4
Color :
# of pins : 2




Pin Description Circuit
1 ANTENNA SIGNAL D5 6WT/OR
2 ANTENNA SHIELD D931 WT/YL

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Connector:
Name : RADIO C5
Color :
# of pins : 2
Qualifier : (SATELLITE RADIO)




Pin Description Circuit
1 SATELLITE ANTENNA SIGNAL D106 6OR/WT
2 SATELLITE ANTENNA SHIELD D126 OR/YL

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Connector:
Name : RADIO C6
Color :
# of pins : 2
Qualifier : (NAVIGATION)




Pin Description Circuit
1 GPS ANTENNA SIGNAL D8 WT/LB
2 GPS ANTENNA SHIELD D108 LB/WT

Component Location - 37




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:
