Keyless Entry Module: Locations

Component ID: 197

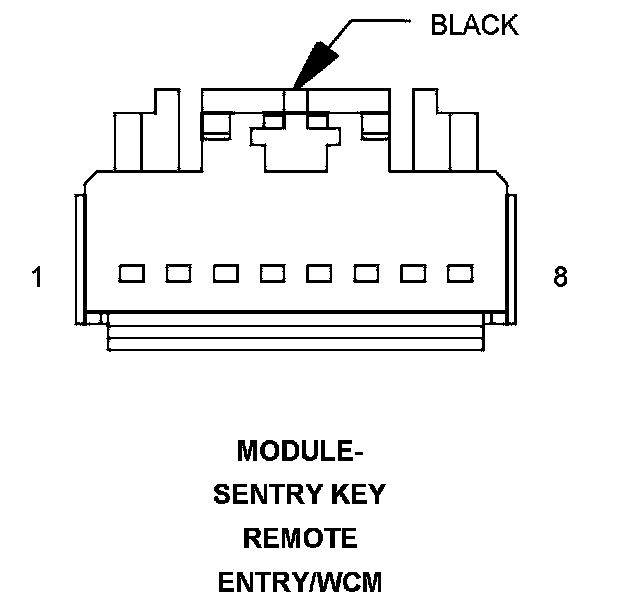

Component : MODULE-SENTRY KEY REMOTE ENTRY/WCM

Connector:
Name : MODULE-SENTRY KEY REMOTE ENTRY/WCM
Color : BLACK
# of pins : 8




Pin Description Circuit
1 IGNITION SWITCH SENSE G20 22VT/BR
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK
4 GROUND Z910 20BK
5 FUSED B(+) (I.O.D.) A411 20RD
6 CAN B BUS (+) D55 20WT/OR
7 CAN B BUS (-) D54 20WT
8 - -

Component Location - 41

Fig. 41:
