U0164

U0164-LOST COMMUNICATION WITH HVAC CONTROL MODULE





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

Battery voltage between 10 and 16 volts.

IOD fuse installed.

TIPM is configured correctly.

- Set Condition:

Bus messages not received from the A/C Heater Control (HVAC) for approximately 2 to 5 seconds.





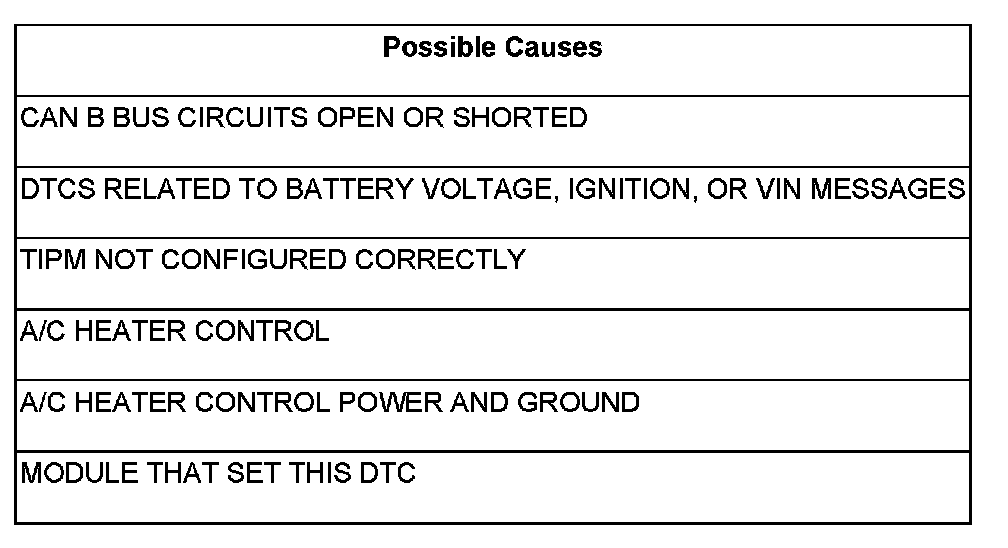

Diagnostic Test

1.VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

With the scan tool, read active DTCs.

Is this DTC active?

Yes

- Go To 2

No

- Refer to the Stored Lost Communication test procedure. Stored Lost Communication DTCs.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

2.CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS

With the scan tool, read active DTCs from all modules.

NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or ignition related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

- Diagnose and repair the DTC.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3.VERIFY THAT THE HVAC IS ACTIVE ON THE BUS

Turn the ignition on.

With the scan tool, select ECU View.

Verify that the HVAC is active on the bus.

Is the HVAC active on the bus?

Yes

- Go To 4

No

- Refer to No response test procedure.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

4.CHECK FOR ADDITIONAL COMMUNICATION RELATED DTCS

With the scan tool, select Network View and select Advanced.

Is there more than one module with active DTCs "Logged Against" the HVAC?

Yes

- Replace/update the A/C Heater Control.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace/update the module that set the DTC
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
