40/41TE Automatic Transaxle (GPEC)

P128B-TCM POWER CONTROL CIRCUIT 2 LOW - TIPM





For a complete wiring diagram Refer to Diagrams/Electrical. Electrical Diagrams


- When Monitored:

With the ignition on. Battery voltage greater than 10 volts.

- Set Condition:

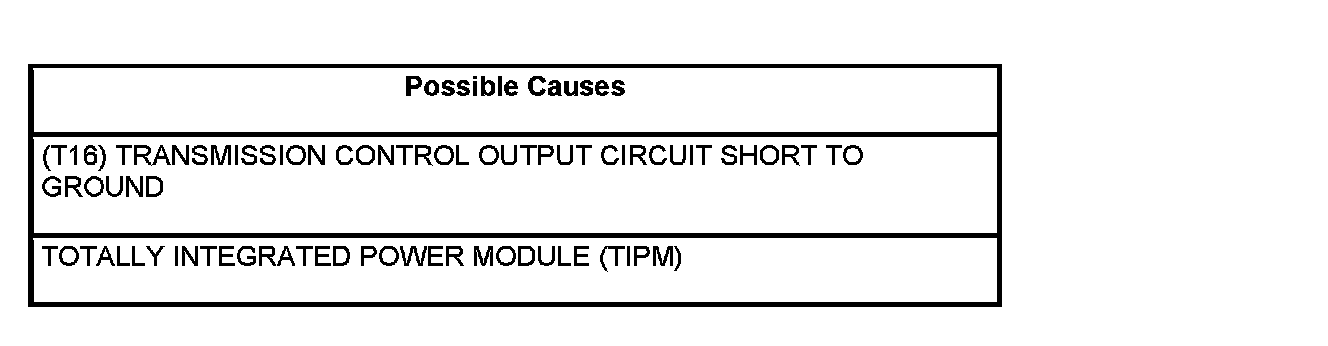

A shorted condition is detected in the TIPM Transmission Control Output circuit.







Diagnostic Test


1. CHECK IF THE DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, read TIPM DTCs.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Go to 5


2. CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR A SHORT TO GROUND





Turn the ignition off to the lock position.

Disconnect the TIPM C10 harness connector.

Disconnect the PCM C1 and C2 harness connectors.

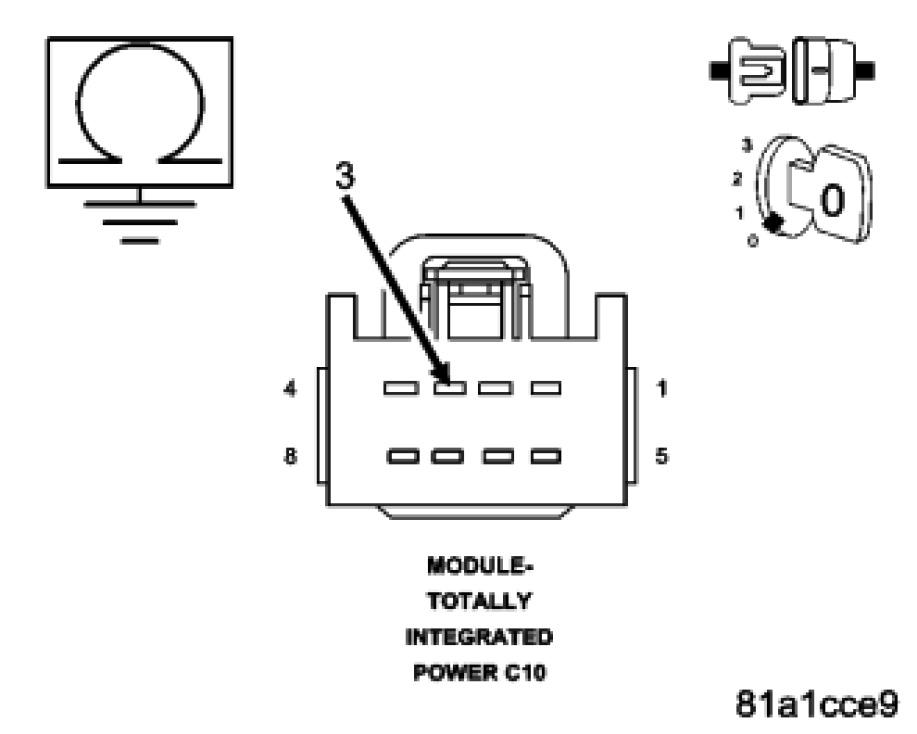

Measure the resistance between ground and the (T16) Transmission Control Output circuit.

Is the resistance below 5.0 ohms?

Yes

- Repair the (T16) Transmission Control Output circuit for a short to ground.
- Perform 40/41TE VERIFICATION TEST. 40/41TE Transmission Verification Test

No

- Go to 3
-


3. CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR AN OPEN





Turn the ignition off to the lock position.

Connect the TIPM C10 harness connector.

Disconnect the Transmission Solenoid harness connector.

Ignition on, engine not running.

Using the scan tool under TIPM, actuate the Transmission.

Using a 12-volt test light connected to ground, check the (T16) Transmission Control Output circuit.


NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

- Go To 4

No

- Repair the (T16) Transmission Control Output circuit for an open.
- Perform 40/41TE VERIFICATION TEST. 40/41TE Transmission Verification Test


4. TOTALLY INTEGRATED POWER MODULE

Using the schematics as a guide, inspect the wire harness and connectors.

Pay particular attention to all power and ground circuits.

Were any problems found?

Yes

- Repair as necessary.
- Perform 40/41TE VERIFICATION TEST. 40/41TE Transmission Verification Test

No

- Replace the Totally Integrated Power Module.
- Perform 40/41TE VERIFICATION TEST. 40/41TE Transmission Verification Test


5. INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

- Repair as necessary.
- Perform 40/41TE VERIFICATION TEST. 40/41TE Transmission Verification Test

No

- Test complete.
