B2184

B2184-IGNITION UNLOCK RUN/START CONTROL CIRCUIT LOW

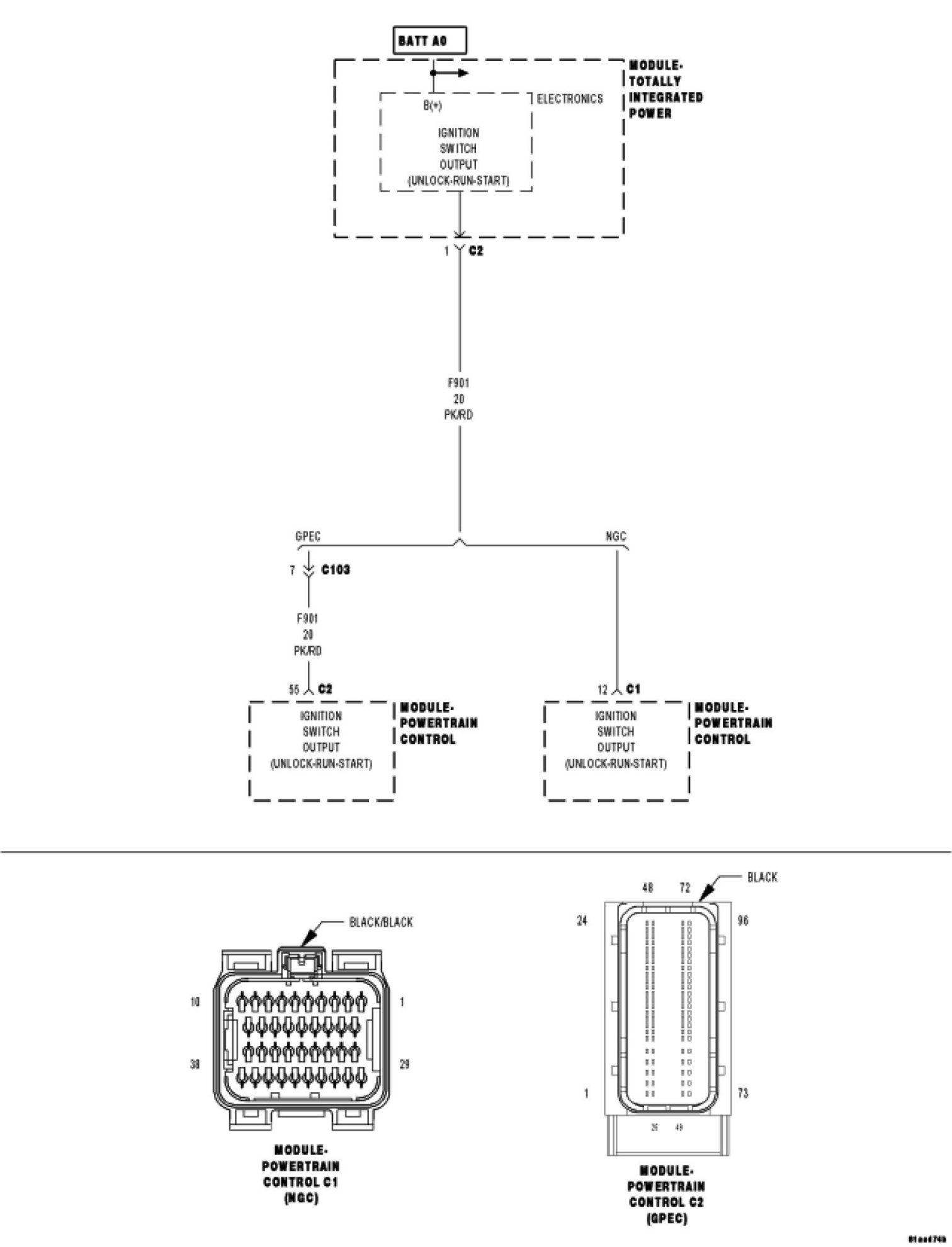

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

(F901) Fused Ignition Switch Output (Unlock-Run-Start) circuit low.





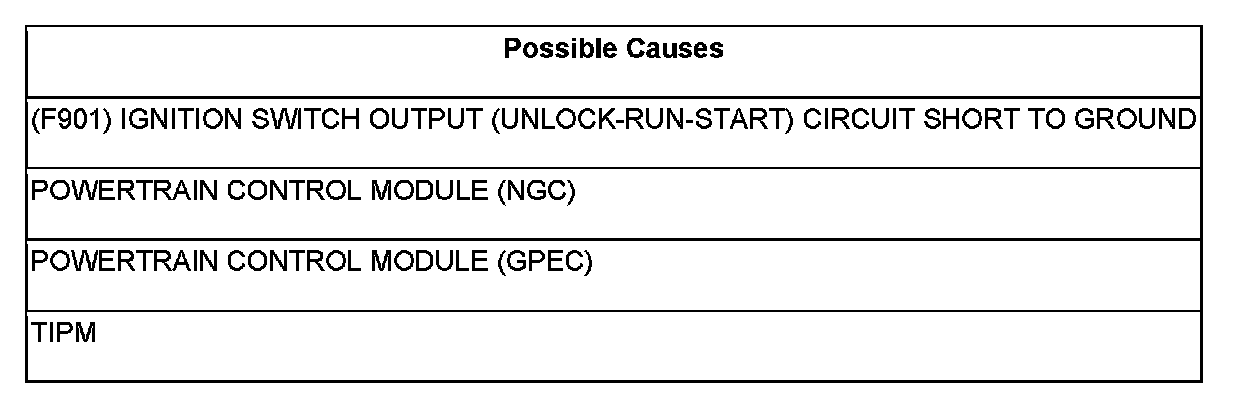

Diagnostic Test

1.CHECK FOR ACTIVE DTC

With the scan tool, read the DTC's.

Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 10 seconds.

With the scan tool, read the DTC's.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.

2. POWERTRAIN CONTROL MODULE (NGC/GPEC)





Turn the ignition off.

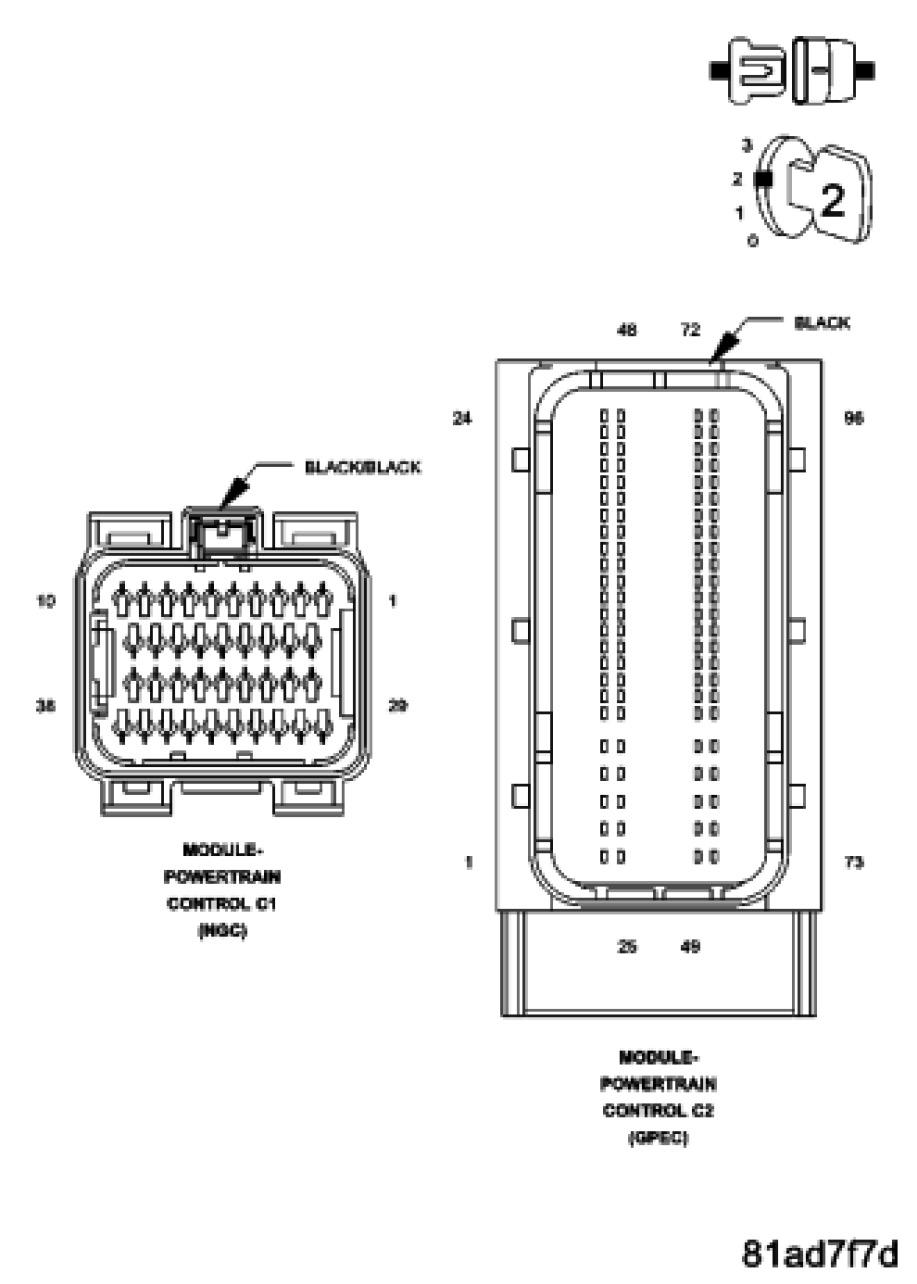

Disconnect the PCM C1 (NGC) or the PCM C2 (GPEC) harness connector.

Turn the ignition on.

Using a test light connected to ground, measure the voltage of the (F901) Ignition Switch Output (Unlock/Run/Start) circuit.

Does the test light illuminate?

Yes

- Replace the PCM.
- Perform BODY VERIFICATION TEST VER 1. Body Verification Test

No

- Go To 3

3.(F901) IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) CIRCUIT SHORT TO GROUND





Turn the ignition off.

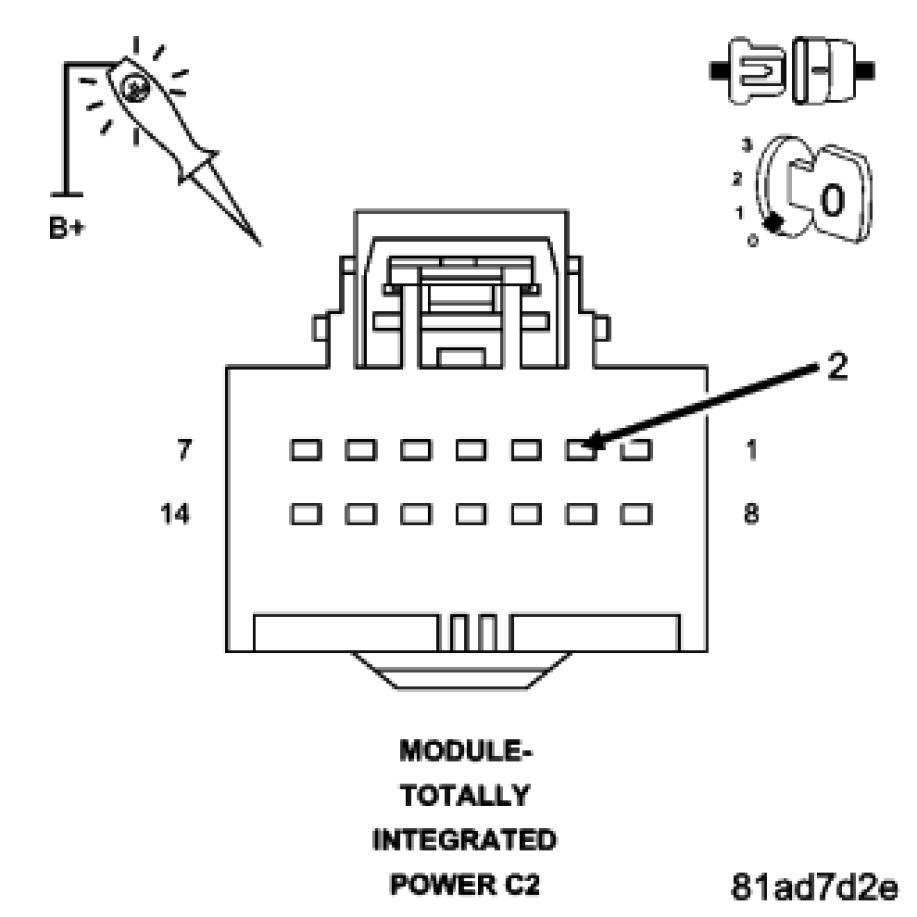

Disconnect the TIPM C2 harness connector.

Using a test light connected to 12 volts, measure for a short to ground on the (F901) Ignition Switch Output (Unlock/Run/Start) circuit.

Does the test light illuminate?

Yes

- Repair the (F901) Ignition Switch Output (Unlock/Run/Start) circuit for a short to ground.
- Perform BODY VERIFICATION TEST VER 1. Body Verification Test

No

- Replace the TIPM.
- Perform BODY VERIFICATION TEST VER 1. Body Verification Test
