Vehicle Theft Security System

B210E-BATTERY VOLTAGE HIGH

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition key in any position but run.

- Set Condition:

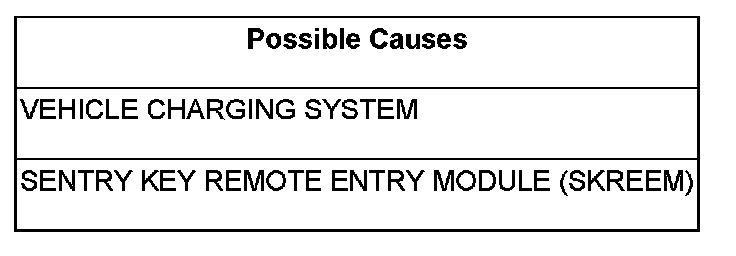

The Sentry Key Remote Entry Module (SKREEM) has detected the Fused (B+) input voltage above 16 volts in all Key Positions except for RUN.





Diagnostic Test

1.DETERMINING IF DTC IS CURRENT

CAUTION: Diagnose and repair all Powertrain DTCs before continuing.

Turn the ignition on.

With the scan tool, record and erase the SKREEM DTCs.

Perform 5 ignition cycles, leaving the ignition switch on for a minimum of 90 seconds per cycle.

Using the scan tool, read the SKREEM DTCs.

Does the DTC reset?

Yes

- Replace and program the SKREEM.
- Perform the SKREEM VERIFICATION TEST. Vehicle Theft Security Verification Tests

No

- The DTC is not active at this time. Test complete.
