Power Windows

B210E-BATTERY VOLTAGE HIGH - DDM/PDM

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

At all times.

- Set Condition:

Anytime the module senses voltage input above 15.9 volts for over 15 seconds, this code will set.

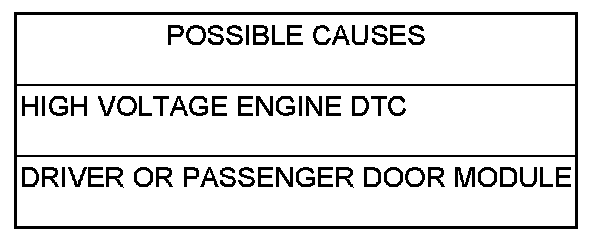

Diagnostic Test

1.CHECK ENGINE DTC's

With the scan tool, read ENGINE DTC's

Are there any ENGINE DTC's present?

No

- Go to 2

Yes

- Refer to symptom list for problems related to ENGINE.

2.TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC's

Start the engine and run for 2 minutes.

With the scan tool, read DTC's.

Does the scan tool display B210E-BATTERY VOLTAGE HIGH?

Yes

- Replace the appropriate Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
