Motor-Wiper-Front

Component ID: 213
Component : MOTOR-WIPER-FRONT

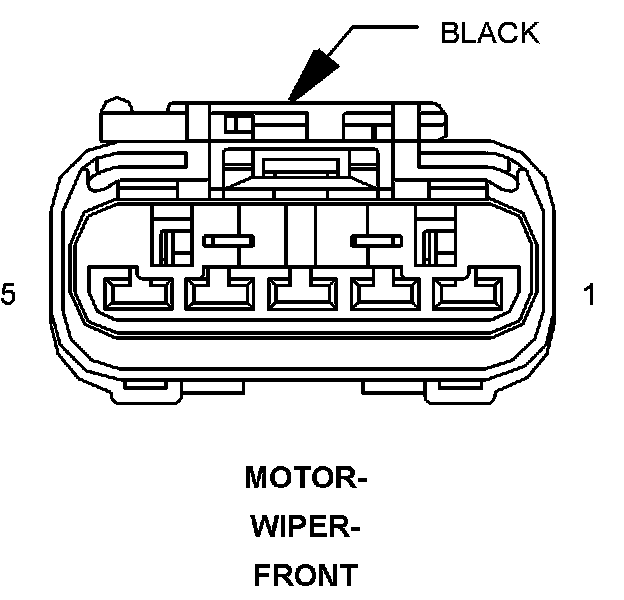

Connector:
Name : MOTOR-WIPER-FRONT
Color : BLACK
# of pins : 5




Pin Description Circuit
1 GROUND Z103 12BK/WT
2 FRONT WIPER PARK SWITCH SENSE W7 20BR/GY
3 - -
4 FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT W3 12BR/WT
5 FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT W4 12BR/OR

Component Location - 1




Component Location - 6

3.8L:
