Removal

REMOVAL
1. Remove door trim panel. Refer to Trim Panel.

2. Remove watershield. Refer to Rear Door Panel.

3. Remove inner belt molding.

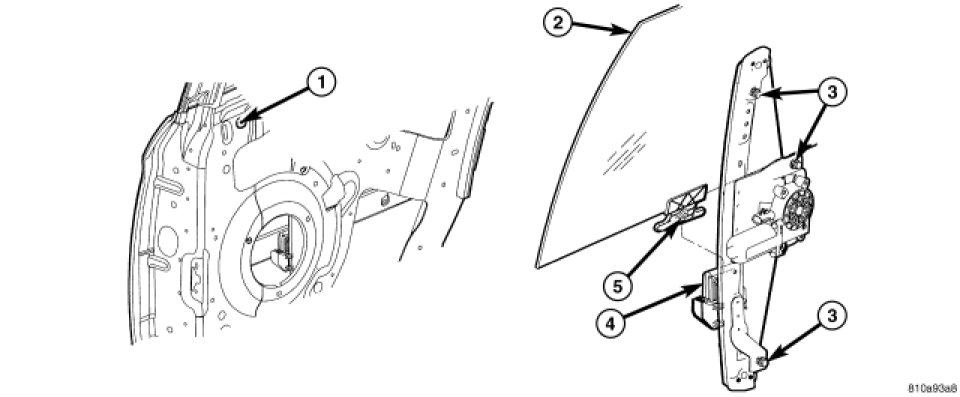

4. Disconnect door glass from lift plate bracket and tape glass in the up position.

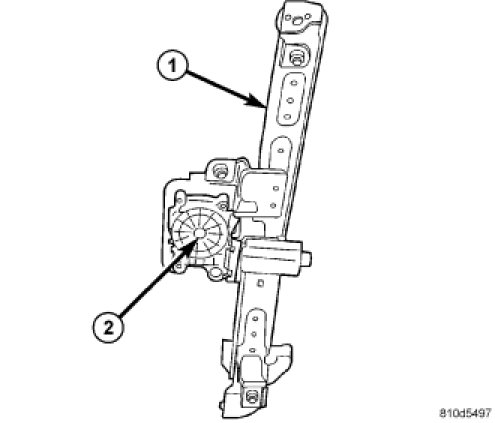

5. Disconnect wire connector from power window motor.





6. Loosen screws attaching regulator and window motor to inner door panel.





7. Remove regulator from inner door panel.
