Motor-Window-Driver Rear

Component ID: 210

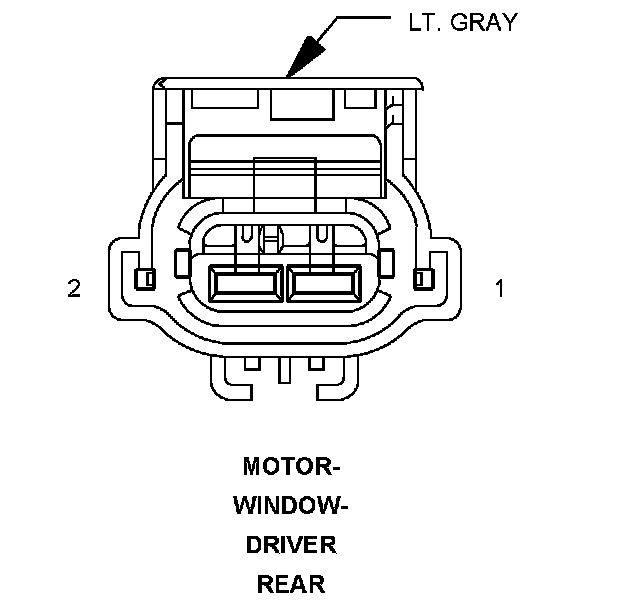

Component : MOTOR-WINDOW-DRIVER REAR

Connector:
Name : MOTOR-WINDOW-DRIVER REAR
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 DRIVER REAR WINDOW DRIVER (DOWN) Q211 14OR/VT
2 DRIVER REAR WINDOW DRIVER (UP) Q111 14OR/BR

Component Location - 43
