Switch-Window-Passenger Rear

Component ID: 424
Component : SWITCH-WINDOW-PASSENGER REAR

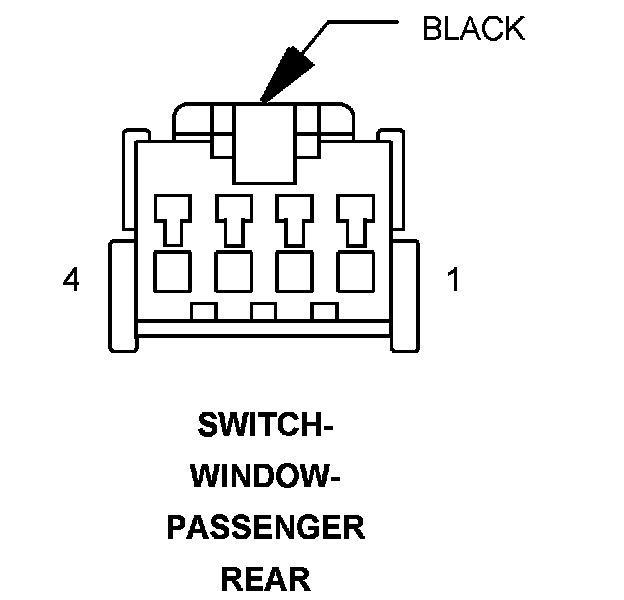

Connector:
Name : SWITCH-WINDOW-PASSENGER REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 - -
2 PASSENGER REAR WINDOW SWITCH MUX Q2 20WT/TN
3 GROUND G982 20VT/TN
4 PANEL LAMPS DRIVER E26 20OR/GY

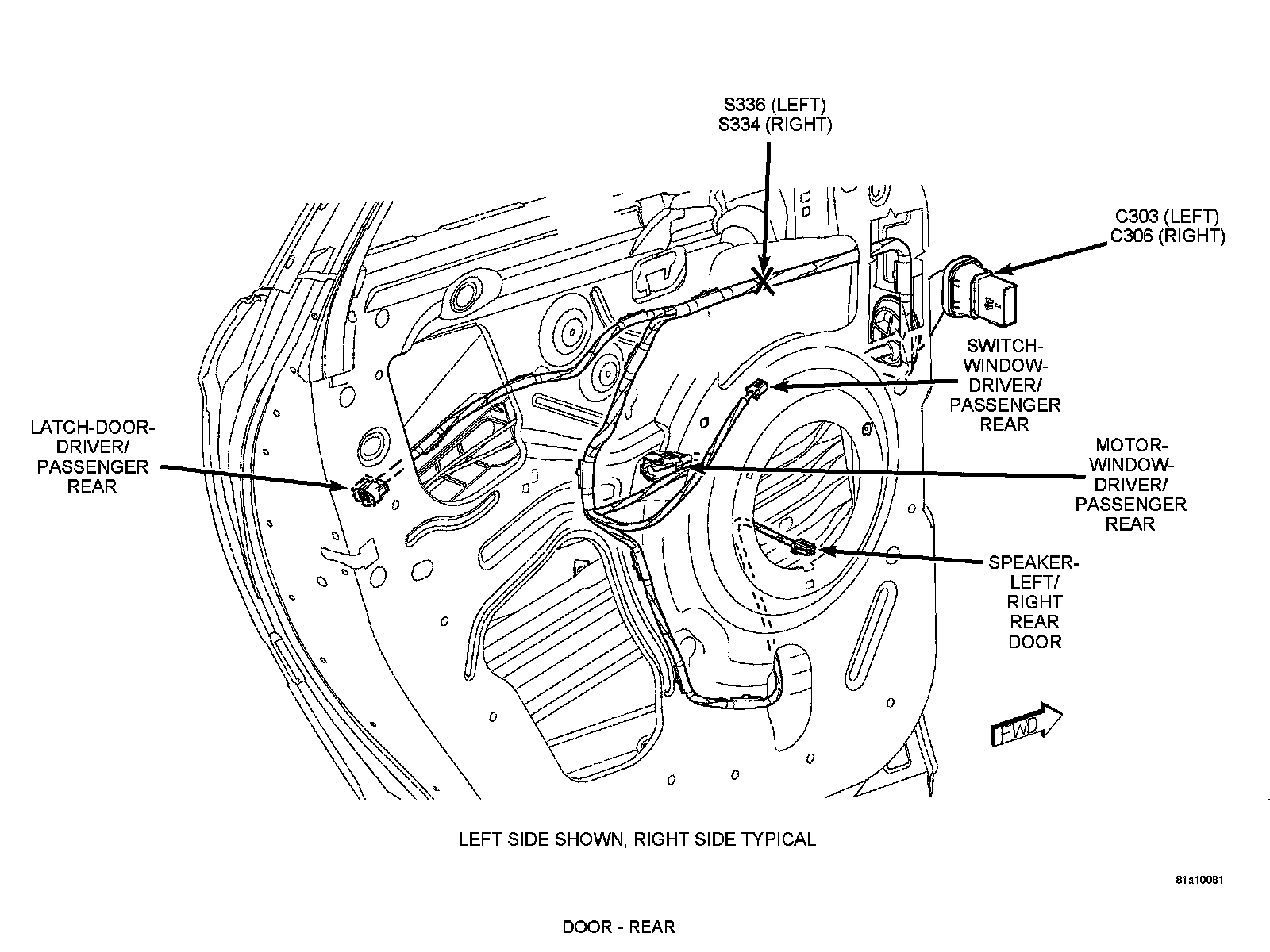

Component Location - 43
