Sensor-Input Speed

Component ID: 360
Component : SENSOR-INPUT SPEED

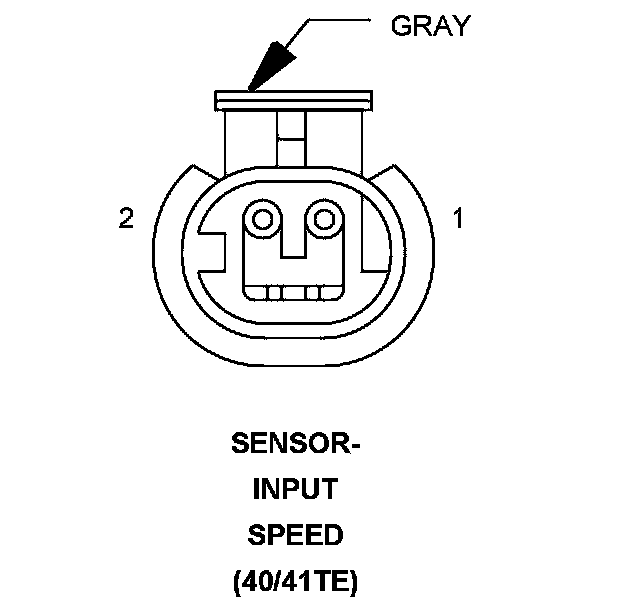

Connector:
Name : SENSOR-INPUT SPEED
Color : GRAY
# of pins : 2
Qualifier : (40/41TE)




Pin Description Circuit
1 SENSOR GROUND T13 18DG/VT
2 INPUT SPEED SIGNAL T52 18DG/WT

Component Location - 1




Component Location - 11

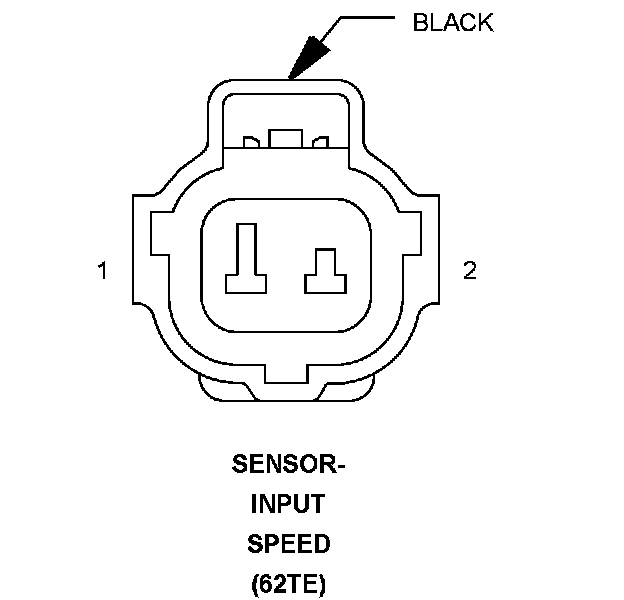

Connector:
Name : SENSOR-INPUT SPEED
Color : BLACK
# of pins : 2
Qualifier : (62TE)




Pin Description Circuit
1 INPUT SPEED SIGNAL T52 18DG/WT
2 SENSOR GROUND T13 18DG/VT

Component Location - 1




Component Location - 11
