Diagnosis And Testing - Rear Driveline Module Operation
DIAGNOSIS AND TESTING - REAR DRIVELINE MODULE OPERATION
Driveline module operation requires relatively straight-forward diagnosis. Refer to the following chart:

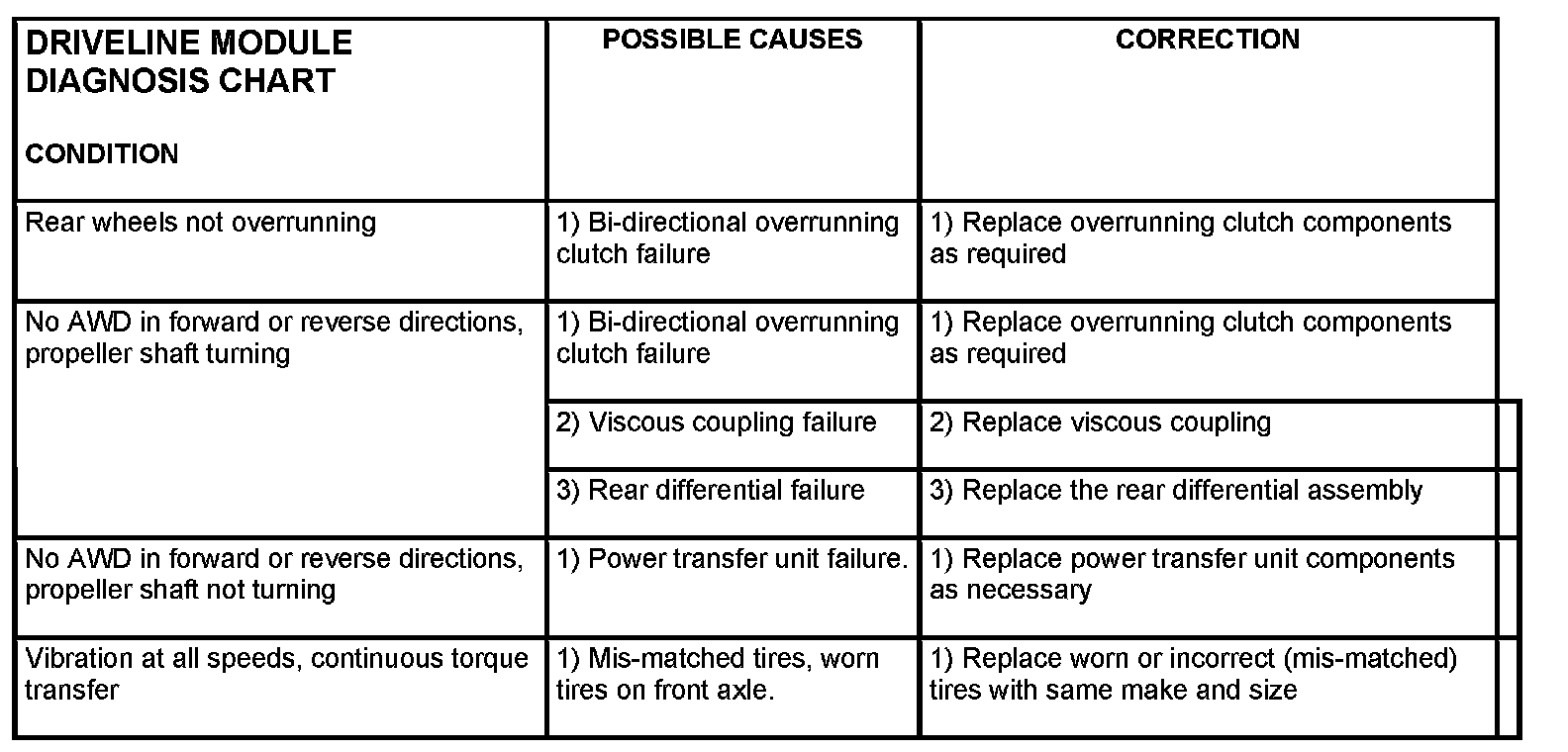

Driveline Module Diagnosis Chart:
