Shifter A/T: Locations

Component ID: 18
Component : ASSEMBLY-SHIFT LEVER

Connector:

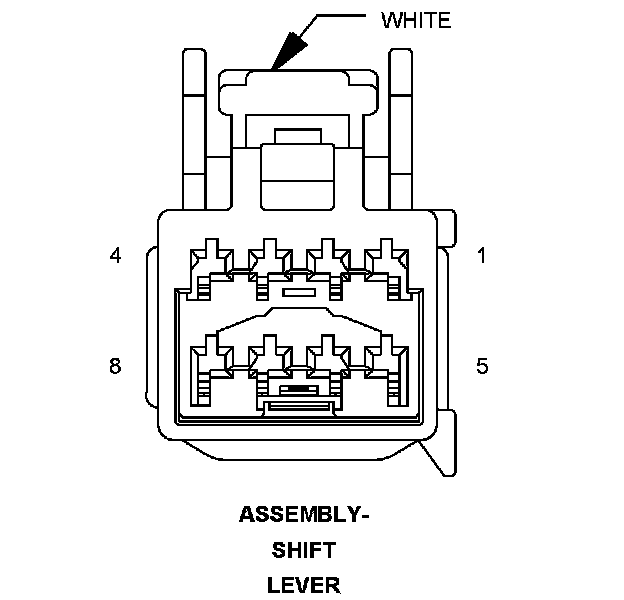

Name : ASSEMBLY-SHIFT LEVER
Color : WHITE
# of pins : 8




Pin Description Circuit
1 GROUND Z101 18BK/VT
2 GROUND Z65 20BK/YL
3 GROUND Z157 18BK/LG
4 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
5 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
6 PANEL LAMPS DRIVER E12 18OR/GY
7 - -
8 IGNITION SWITCH OUTPUT (RUN-START) F2 18PK/YL

Component Location - 14




Component Location - 23
